China Metal Milling And Drilling Machine ZAY7032FG 32mm Gear Head Bench Type for sale

Metal Milling And Drilling Machine ZAY7032FG 32mm Gear Head Bench Type

Price Negotiable

Price: Negotiable

MOQ: 1 pieve

Delivery Time: 10-20 days after received payment

Product Description

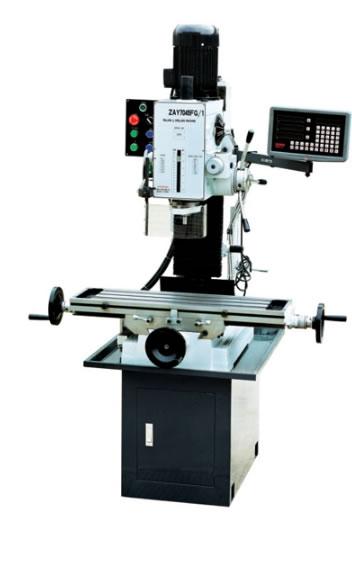

Metal Milling And Drilling Machine ZAY7032FG 32mm Gear Head Bench Type

Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed, Milling, drilling, tapping, boring and reaming Head swivels ±90° Vertically.

Drilling and milling machine
1) Cyclic change of spindle speed
2) Auto-feeding for spindle
3) Cyclic change of feeding speed
Drilling and milling machine ZAY7032FG/1

MAIN SPECIFICATION		UNIT	ZAY7032FG/1
Drilling capacity		mm	32
Max.boring diameter		mm	50
Face milling capacity		mm	63
End milling capacity		mm	20
Max.distance from spindle nose to table		mm	450
Min.distance from spindle axis to column		mm	260
Spindle travel		mm	130
Spindle taper			M.T.3 or R8
Step of speed			6
Range of spindle speed	50HZ	rpm	80-1250
	60HZ	rpm	95-1500
Step of automatic feeding of spindle			6
Automatic feeding amount of spindle		mm/r	0.06-0.30
Swivel angle of headstock (Headstock perpendicular)			±90°
Size of table		mm	800x240
Forward and backward travel of table		mm	175
Left and right travel of table			500
Power		kw	0.75(1Hp)
Voltage/Frequency			As customer's requirement
Overall height (Without stand)		mm	1020
Net weight		kg	320
Gross weight		kg	370
Packing size		mm	880x770x1160
