Deep Hole Milling And Drilling Machine ZAY7040FG Parts 750W Power
Price:
Negotiable
MOQ:
1 pieve
Delivery Time:
10-20 days after received payment
Product Description

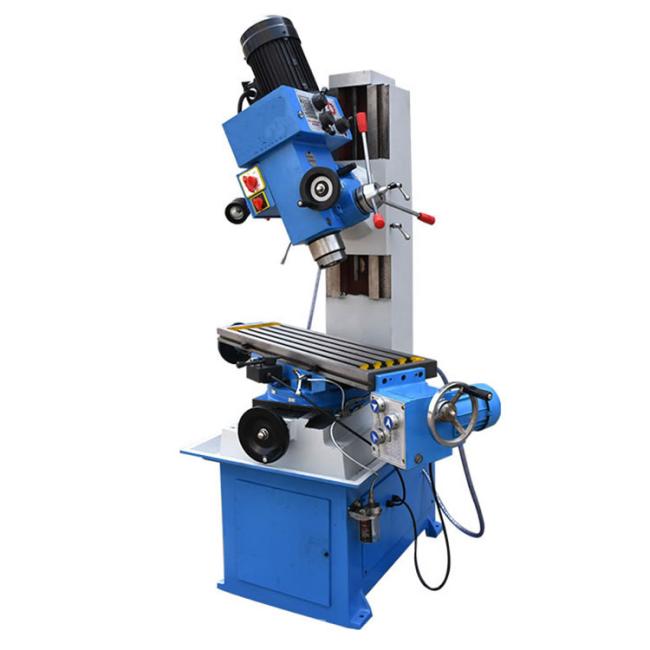

Deep Hole Milling And Drilling Machine ZAY7040FG Parts 750W Power
1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel.
| Model | ZAY7040FG |
| Drilling capacity | 40 mm |
| Face milling capacity | 80 mm |
| End milling capacity | 32 mm |
| Distance from spindle nose to table | 450 mm |
| Min. distance from spindle axis to column | 260 mm |
| Spindle travel | 130 mm |
| Spindle taper | MT4 or R8 |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 rpm |
| Range of spindle speed 60Hz | 95-1500 rpm |
| Swivel angle of headstock (Vertical) | 90° |
| Table size | 800x240 mm |
| Forward and backward travel of table | 175 mm |
| Left and right travel of table | 500 mm |
| Motor Power | 1.1 kW 1.5 HP |
| Packing size | 77X88X116 cm |
| G.W./N.W. | 370 /320 kg |
| Loading amount /20” container | 36 pcs |
