Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine
Industry 32mm 40mm 50mm 63mm 80mm Diameter Radial Arm Press Drilling Machine
Product Description:

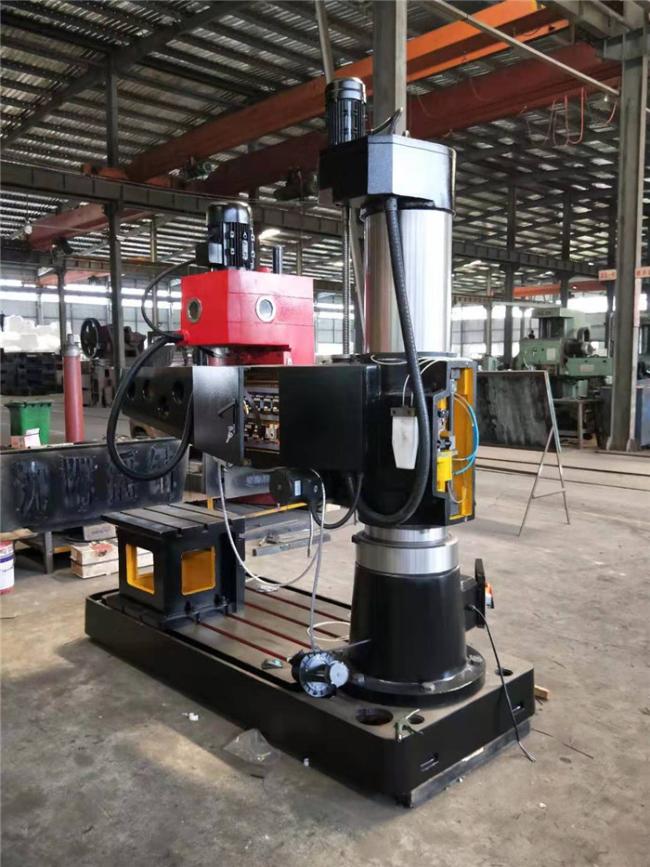

Radial Drilling Machines are widely used in single and small batch production to process the holes of larger and heavier workpieces. Radial Drilling Machines are available in a wide range of screw holes, threaded bottom holes and oil holes for drilling large workpieces. The radial drilling machine is used for processing small and medium-sized holes on bulky workpieces or porous workpieces. It is mainly composed of base, column, rocker arm, headstock, spindle workpiece table, etc.
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us the max drilling diameter? The length of arms for your side needed? so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
| Specifications | Units | Z3032×10 |
| Max. drilling diameter | mm | Steel Φ32 Iron Φ32
|
| Tensile strength | Mpa | 500-600 |
| Column diameter mm | 200 | |
| Distance from spindle center line to column bus bar | mm | 200-910 |
| Horizontal moving distance of spindle box | mm | 710 |
| Distance from spindle nose to base | mm | 330-1060 |
| Rocker arm lift distance | mm | 730 |
| Spindle travel | mm | 120 |
| Spindle taper | MT4 | |
| Spindle speeds range | r/min | 108 162 262 398 665 1000(6 step) |
| Spindle feeding range | mm/r | 0.10 0.16 0.25(3 step) |
| Max. spindle allows feed resistance | N | 5300 |
| Rocker arm lifting speeds | m/min | 1.21 |
| Rocker rotary angle | ° | + 180 |
| Main motor power | kw | 1.5/2.2 |
| Lifting motor power | kw | 0.55 |
| Cooling pump motor power | kw | 0.04 |
| Net weight | kg | 1080 |
| Overall dimensions(L×W×H) | mm | 1400×660×2060 |
Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
