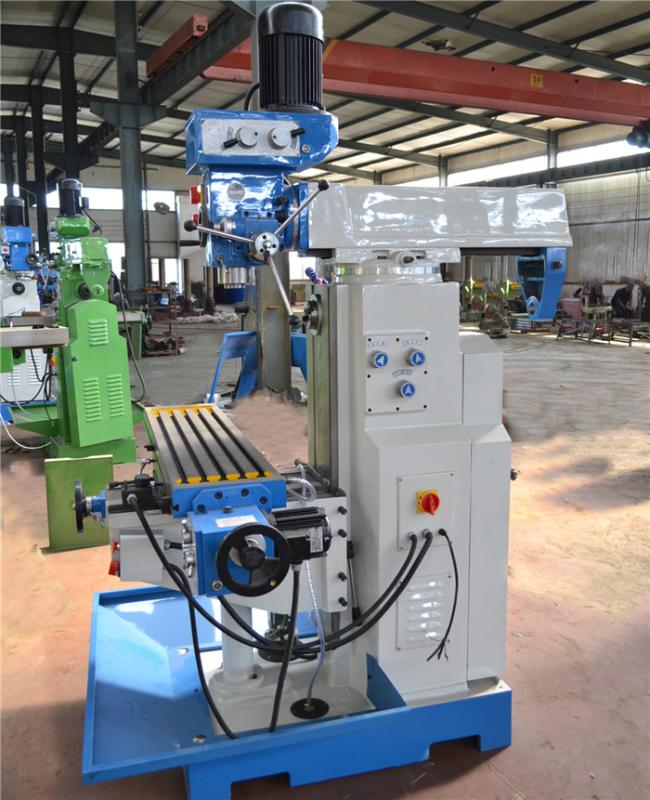

ZX6350A Universal Drilling And Milling Machine
Drilling milling machine ZX6350A Universal Drilling and milling machine
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

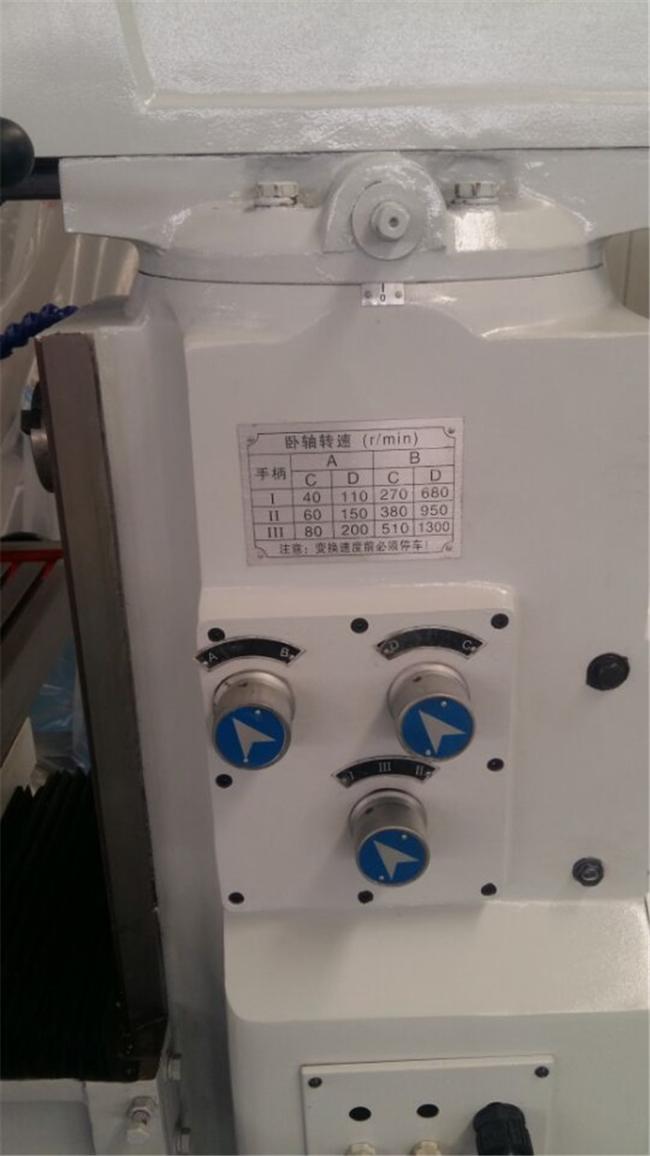

4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
| Main Technical data | Unit | ZX6350A | ZX6350C | ZX7550CW |
| Drilling a maximum diameter | mm | 50 | 50 | 50 |
| Maximum milling width | mm | 100 | 100 | 100 |
| Milling diameter | mm | 25 | 25 | 30 |
| Bore diameter | mm | 120 | 120 | 120 |
| Maximum tapping diameter | mm | M16 | M16 | M16 |
| Spindle taper hole | 1SO40#/7:24MT4 | 1SO40#/7:24MT4 | 1SO40#/7:24MT4 | |
| Distance spindle nose to table | mm | 80-460 | 80-460 | 24-720 |
| Spindle speed range | rpm | (V)115-1750(H)40-1300 | (V)115-1750(H)40-1300 | (V)115-1750(H)40-1300 |
| Spindle stroke | mm | 120 | 120 | 1200x1270x2050 |
| Table size | mm | 1200×280 | 1500×280 | 950x250 |
| Table travel | mm | 650×300×430 | 650×300×430 | 500x240 |
| Dimensions | mm | 1600×1480×2250 | 1600×1300×2200 | 1200x1270x2050 |
| Motor Power | kw | (V)1.5/2.2(H)2.2 | (V)1.5/2.2(H)2.2 | 1.5 |
| Weight | T | 1450 | 1360 | 950 |
