CA6140 horizontal manual lathe machine for maching1m/1.5m/3m/5m workpiece
CA6140 horizontal manual lathe machine for maching1m/1.5m/3m/5m workpiece

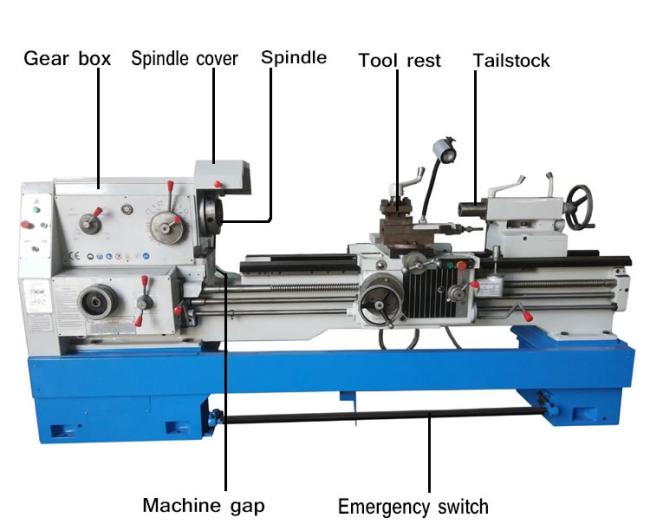

The CA6140 ordinary horizontal lathe consists of a headstock, a saddle and a tool holder component, a tailstock, a feed box, a slide box, and a bed.
The CA6140 lathe is a precision-grade universal machine that is suitable for machining internal and external turning surfaces on various shafts, sleeves and disc parts, as well as turning end faces. It can also process a variety of commonly used metric, imperial, modular and radial threads, as well as drilling, reaming, reaming, knurling and more. The processing range is wide, and because of its complicated structure and low degree of automation, it is suitable for single-piece small batch production and repair workshops.
| Specifications | CA6140 CA6140B | CA6240 CA6240B | |
| Max. Swing over bed | 400mm | ||
| Max. Swing over carriage | 210mm | ||
| Max. swing in gap | -- | 630mm | |
| Effective gap length | -- | 210mm | |
| Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||
| Width of bed | 400mm | ||
| Section of turning tool | 25x25mm | ||
| Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |
| Hole through spindle | 52mm. (80mm) | ||
| Spindle taper | NO.6(Φ90 1:20) | ||
| Feed | Number of feeds | 64 kinds(for each) | |
| Range of metric threads(kinds) | (1-192mm)44kinds | ||
| Range of inch threads(kinds) | (2-24tpi)21kinds | ||
| Range of module threads(kinds) | 0.25-48 (Moduie39kinds) | ||
| Range of pitch threads(kinds) | 1-96DP(37kinds) | ||
| Tailstock | Max. tail stock spindle travel | 150mm | |
| Tail stock spindle diameter | 75mm | ||
| Taper of tail stock spindle center hole | NO.5 | ||
| Main motor | 7.5KW(10HP) | ||
| Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |
| Overall dimensions for1000mm | 2700x1140x1750 | ||
| Overall dimensions for1500mm | 3200x1140x1750 | ||
| Overall dimensions for2000mm | 3700x1140x1750 | ||
| Overall dimensions for2200mm | 4030x1140x1750 | ||
| Overall dimensions for3000mm | 4850x1140x1750 | ||
| Overall dimensions for4000mm | 5800x1140x1750 | ||
| Weight (kg) | Length | G.W N.W. | |
| Weight for 750mm | 2100 1990 | ||
| Weight for 1000mm | 2190 2070 | ||
| Weight for 1500mm | 2350 2220 | ||
| Weight for 2000mm | 2720 2570 | ||
| Weight for 2200mm | 2800 2600 | ||
| Weight for 3000mm | 3300 3200 | ||
| Weight for 4000mm | 3500 3400 | ||
