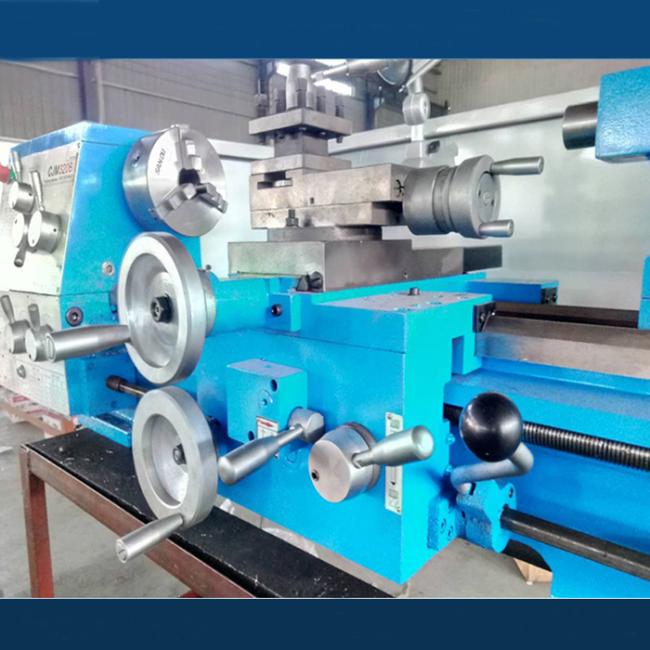

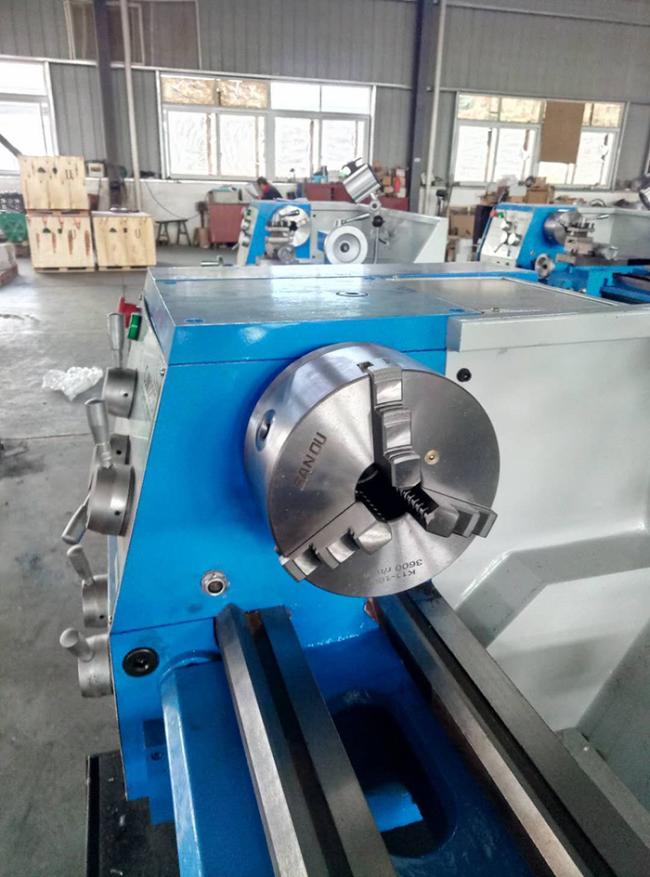

Mini Metal Gap Bed Bench Lathe Machine CQ6130 With CE Approval Manual
Mini Metal Gap Bed Bench Lathe Machine CQ6130 Lathe With CE approval Manual
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 125-2000rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
1. Vertical and horizontal feed adopts interlocking mechanism and considerable safety design.
2. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
3. With 2 precision D degree taper roller bearing s on the spindle.
4. Adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
5. All machines have to pass the checklist of the machine precision before shipment
| Specifications | CA6150 |
| Max. Swing over bed | 500mm |
| Max. Swing over carriage | 300mm |
| Max. Swing in gap | / |
| Effective gap length | / |
| Max. length of work piece | 1000mm |
| Width of bed | 400mm |
| Section of turning tool | 25x25mm |
| Spindle speeds | 11-1600rpm(24 steps) |
| Hole through spindle | 52mm(80mm) |
| Spindle taper | NO.6(MT6)(90 1:20) |
| No. of feeds | 64(kinds)(for each) |
| Range of metric threads(kinds) | (1-192mm) (44 kinds) |
| Range of inch threads(kinds) | (1-24tpi) (21 kinds) |
| Range of module threads(kinds) | 0.25-48(Module 39 kinds) |
| Range of Diametral pitc threads(kinds) | 1-96DP (37 kinds) |
| Max tailstock spindle travel | 150mm |
| Tailstock spindle diameter | 75mm |
| Taper of taistock spindle center hole | NO.5 (MT5) |
| Main motor | 7.5KW(10HP) |
| Overall dimensions | 2650x1150x1700mm |
| N.W./G.W. | 2140/2900kgs |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
