380V / 50HZ Machining Center Colorful Tape Production Line 500mm Coating Width

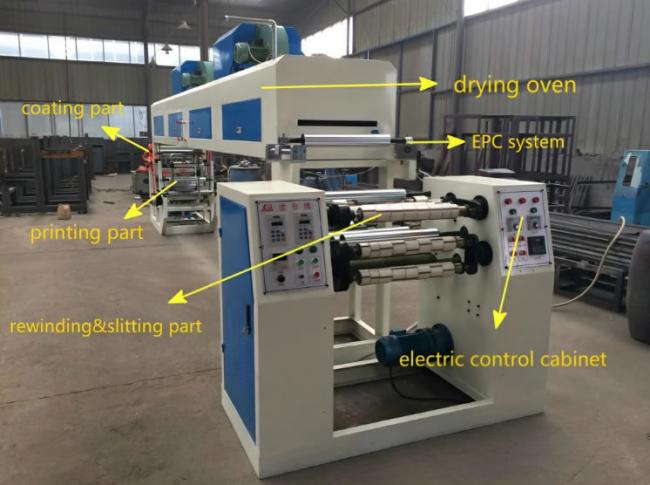

HK-500D packing tapes making machinery colorful tape forproduction line
This machine is mainly suitable for BOPP transparent sealing tape and semi-finished mother roll slitting processing of various printing printing sealing tape.
The main technical parameters:
Effective slitting tape semi-finished product with larger width 1300MM, effective slitting tape semi-finished product with larger diameter 800MM, finished tape with smaller slitting width
Main technical characteristics: This machine adopts three-stage automatic stop labeling, automatic roll change after two starts, and stable and accurate meter counting. Pneumatically controlled unwinding and unwinding
| Model | HK-500D |
| Oven length | 6m-12m |
| Voltage | 3P+1 380V/50HZ |
| Heating | Electricity or gas |
| Maximum Maximum diameter of discharge | 600mm |
| Maximum rewinding diameter | 250mm |
| Minimum slitting width | 10mm |
| Coating width | 500mm |
| Coating speed | 20-30m/min |
| Motor Power | 1.1kw×2 |
| Installation dimensions | 7.6×1.3×2.6m |
| weight | 2000KG |
| printing | one color or two colors |
Specifications of HK-500C Adhesive BOPP cello tape printing coating machine
