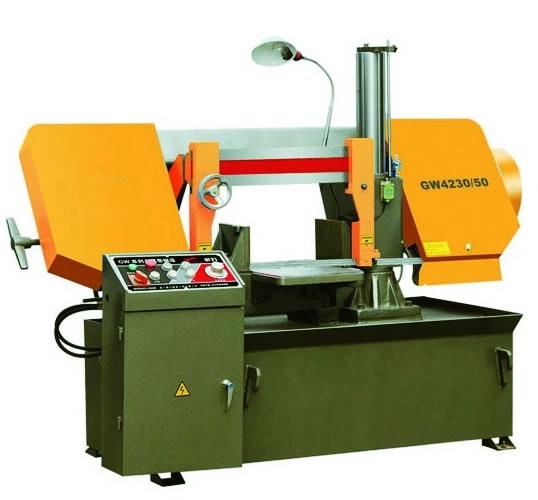

High quality GW4230 horizontal type sawing machine for metal cutting
Price:
Negotiable
MOQ:
1 pieve
Delivery Time:
10-20 days after received payment
Product Description
High quality GW4230 horizontal type sawing machine for metal cutting
1. Double-column double cylinder structure.
2. Hydraulic jaw clamping.
3. The guiding seat structure ensures that the guiding block is correctly guided.
4, hydraulic control sawing feed, stepless speed regulation.
5, according to the requirements can be customized automatic and hydraulic tension saw blade.
| Item NO: | GW4230/50(H-300HA) | |
| Maximum Cutting Capacity | Round | 300mm |
| Square | 300*500mm | |
| Rectangle | 300*500mm | |
| Saw blade | Speed | 22/41/59/85m/min |
| Size | 4000*34*1.1mm | |
| Tension | manual | |
| Guide | TINGS CARBIDE | |
| Cleaning | brush | |
| Motor Output | Saw blade | 3KW |
| Hydraulic | 0.75KW | |
| Coolant | 0.75KW | |
| Tank Capacity | Hydraulic oil | 40L |
| Coolant | 60L | |
| Feeding | Mode | manual |
| Length | 0.7M | |
| Vise Control | hydraulic | |
| N.W/G.W | 1000KGS/1050KGS | |
| Packing Size(L*W*H) | 2150*1220*1530mm | |
| Standard Accessories | Bi-metal saw blades,tool box,manual instruction,feeding table | |
