China GY4235 / GY4240 Angle Band Saw Machine For Metal Cutting 45 Degree for sale

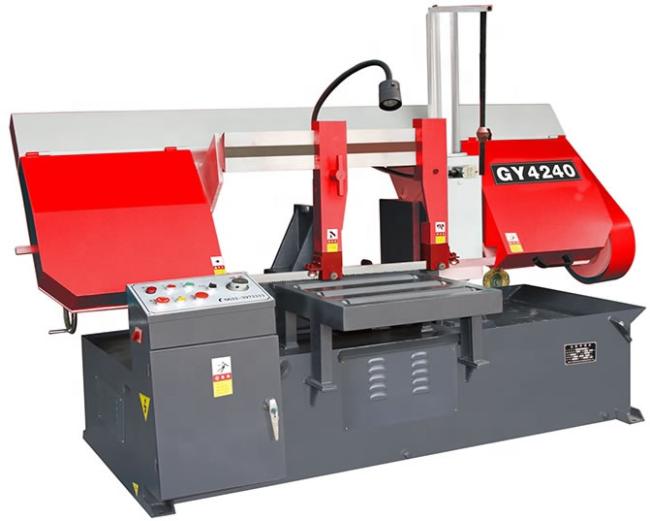

GY4235 / GY4240 Angle Band Saw Machine For Metal Cutting 45 Degree

Price Negotiable

Price: Negotiable

MOQ: 1 pieve

Delivery Time: 15-20 days after received payment

Product Description

GY4235 / GY4240 Precision Grinding Machine Angle Band Saw For Metal Cutting 45 Degree

1. Double column structure, vertical lifting, high stability;
2. According to the user's request, the rotation angle can be set by the user. When the workpiece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;
3. Cutting speed hydraulic control, stepless speed regulation;
4. The workpiece is clamped to hydraulic clamping, which is easy to operate;
5. Customizable three-way hydraulic clamping device.

Spec	Unit	GY4230	GY4235	GY4240	GY4250
Cutting range	mm	Φ300-300×300	350-350×350	400-400×400	500-500×500
Saw band size	mm	3565×34×1.1	4115×34×1.1	4650×41×1.3	5800×41×1.3
Band saw line speed	mm/min	27,45,69	27.45.69	27.45.69	27.45.69
Work clamping		Hydraulic	Hydraulic	Hydraulic	Hydraulic
Rotation angle	°	0-45	0-45	0-45	0-45
Main motor power	kw	2.2	3	4	5.5
Hydraulic motor power	kw	0.55	0.55	0.75	0.75
Cooling pump power	kw	0.04	0.04	0.04	0.125
Dimensions	mm	2000×1000×1300	2000×1100×1500	2380×1200×1500	2800×1300×2000
