Single Head Hydraulic Pipe Bender For Sale Semi Auto Hydraulic Pipe Bending Machine
Single Head Hydraulic Pipe Bender For Sale Semi Auto Hydraulic Pipe Bending Machine
Introduction:
1. Text display, PLC control, machine operation is very stable.
2. Choose a variety of functions with manual, automatic, semi-circle, full circulation.
3. Five kinds of angle setting (0-185 degrees arbitrarily chosen) may also select multiple consecutive single choice.
4. Mobile pedal switch, with automatic start, emergency stop, emergency stop continued three functions, safe.
5. A cooling circulation system, more stable running of the machine
6. Mold replacement is simple and convenient, to facilitate flexible production.
7. Head, elbow arm compact design provides maximum bending space.
Works description:

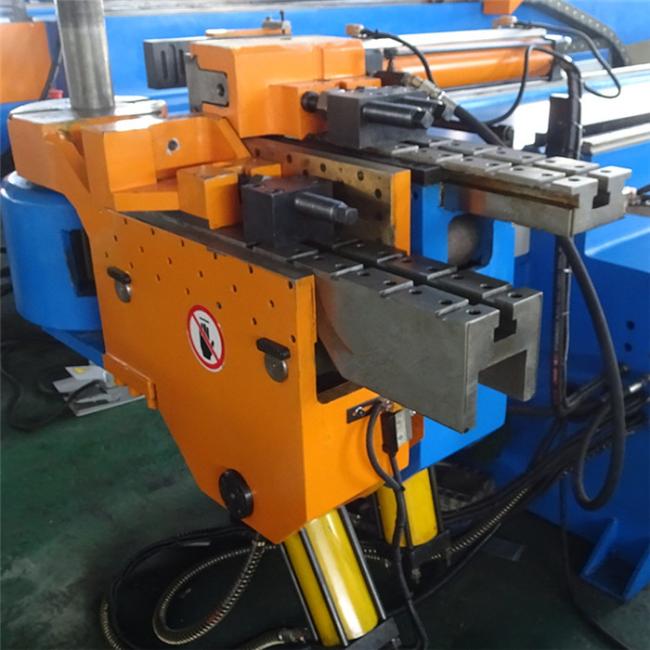

The machine consists of main transmission mechanism, mandrel body, top feed mechanism, the main part of the clip feeding mechanism, electrical systems and hydraulic systems. In operation, the rotation of the motor driven pump, pressure oil is supplied, the microcomputer (PLC) to issue instructions to control the solenoid valve to open, close, so that the cylinders in a certain order and regularity actions to achieve the purpose of the bend.
| Specification/Model | DW75CNC |
| Max bending diameter of pipe | 75mm |
| Max bending wall thickness of pipe | 3mm |
| Max bending radius | 300mm |
| Min bending radius | 100mm |
| Max bending angle | 190° |
| Max feeding length | 2800mm |
| feeding method | direct feeding / clamping feeding |
| Bending speed | Max 85°/s |
| Rotary speed | Max 200°/s |
| Feeding speed | Max 1000mm/s |
| Bending accuracy | ±0.1° |
| Rotary accuracy | ±0.1° |
| Feeding accuracy | ±0.1mm |
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
