ZH-2000 Longitudinal Seam Welding Machine 0.5mm-6mm Cylinder Without Deformation

ZH-2000 Longitudinal Seam Welding Machine 0.5mm-6mm Cylinder Without Deformation

Automatic Longitudinal Seam Welder series are mainly used for welding longitudinal seam of thin sheet.

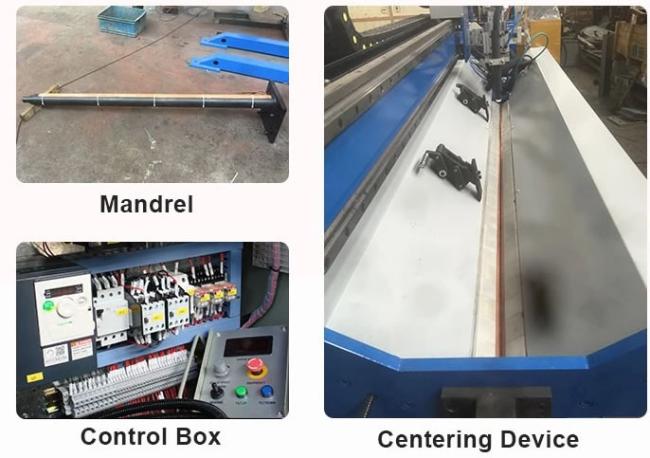

It adopts cantilever type, and it is mainly composed of frame, fingers-type clamping unit, water-cooling mandrel,

travelling carriage, crossing slider, wire feeder and torch holder. Fingers-type clamping unit owns special push

from air cell, pressure of air cell is adjusted between 0 to 7kg/cm2, and the distance of two banks of fingers

between 5 to 20mm to satisfy various welding seam width; Water-cooling mandrel is designed according the work

pieces' diameter and length to ensure the strength. The top of mandrel is inserted water-cooling insert with groove

for heat-sink cooling. It is adjustable in mandrel height to handle various material thicknesses. Beam is fitted with

travel carriage which is moved straightly by track and driving unit, variable speed.
