Automatic Metal Polishing Machine MT618 Polishing , Flat Metal Process Grinding Machine
Automatic Metal Polishing Machine MT618 Polishing Flat Grinder Metal Process Grinding Machine

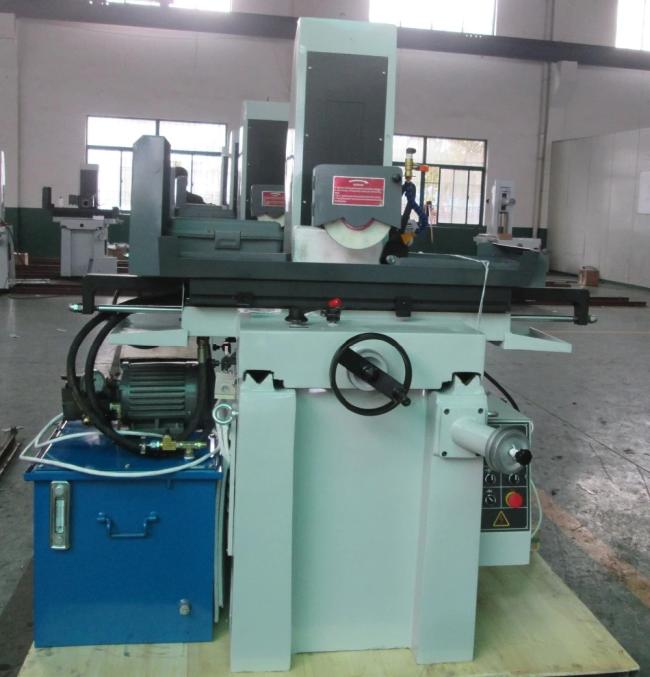

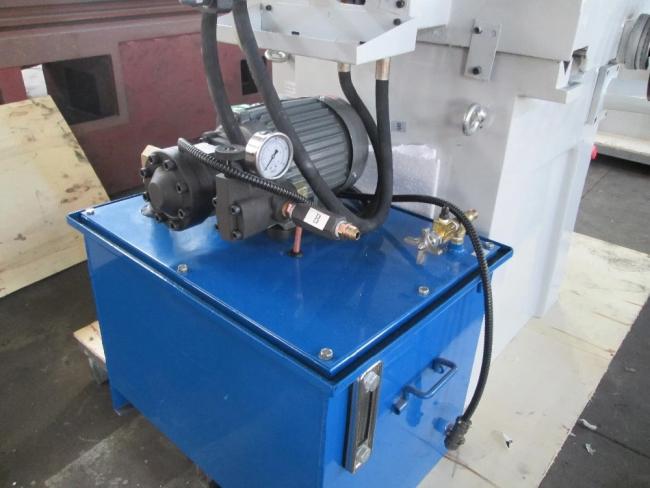

Surface grinding machine is widely used in equipment manufacturing,military industry,mold,automotive hydraulic and other industries precision parts of the plane,end face and groove processing,adopts plate movable structure,independent hydraulic station,automatic lubrication system.
1, The machine is reasonable in structure, good rigidity, beautifulappearance,convenient operation.
2, Using precision plasticguide surlace and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
3, The main mechanical valve is a specia1 valve grinder, isdivided intotwo parts,,the mechanicalcommutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
4, Grinding can be all kinds of plane andcomplexshaped surface, suitableformotor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
Standard Accessories:

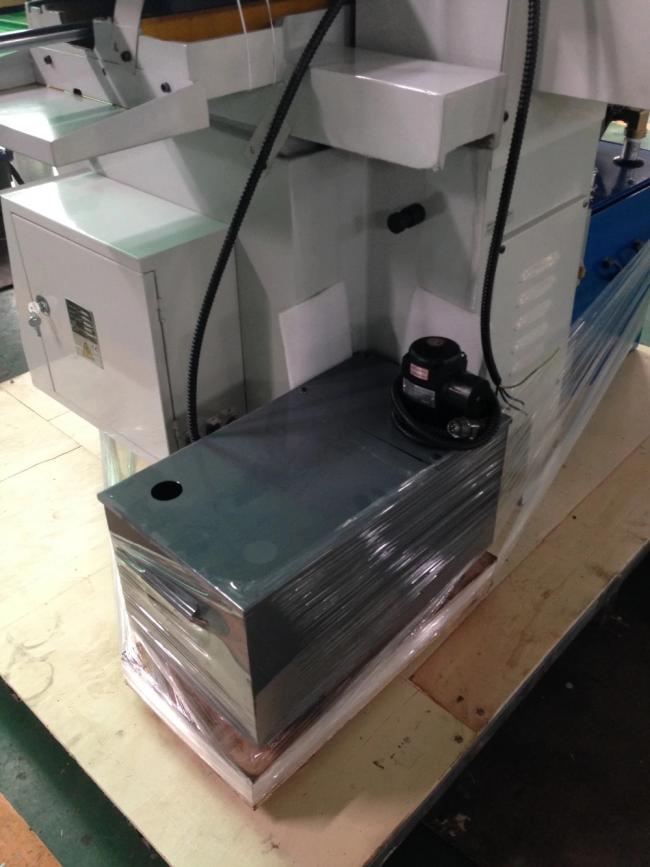

Coolant tank
Shandard electro magnetic chuck
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser shant(not include diamond pen)
Build inelectro magnetic chuck controller
| Model | MT618 | MT820 | MT1022 | MT1224 | MT1230 | |
| Max.workpiece to be Ground(L*W*H) (mm) | 460*180 | 480*200 | 540*250 | 600*300 | 700*300 | |
| Maximum travel of table(L* W) | 500*190 | 530*220 | 560*260 | 640*320 | 760*370 | |
| Distance from Table Surface To Spindle Center (mm) | 335 | 450 | 450 | 490 | 540 | |
| Wheel Size(dia * width *bore) (mm) | Φ200*20*φ31.75 | Φ200*20*φ31.75 | Φ200*20*φ31.75 | Φ300*30*φ75 | Φ300x30xφ75 | |
| Spindle speeds (50HZ) (r/m) | 2850 | 2850 | 2850 | 1440 | 1400 | |
| Table longitudinal (left and right) speed (stepless) (m/min) | 3-20 | 3-20 | 3-20 | 3--20 | 5-25 | |
| Spindle motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Cooling motor(w) | 40 | 40 | 40 | 40 | 40 | |
| hydraulic motor (kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Working Pressure(mpa) | 3 | 3 | 3 | 3 | 3 | |
| The machined surface of the base of parallelism (mm) | 300/0.005 | 300/0.005 | 300/0.005 | 300/0.004 | 300/0.004 | |
| Surface Roughness(μm) | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 | Ra0.32 | |
| Gross(T) | 1200 | 1350 | 1400 | 1650 | 2350 | |
| Size(mm) | 1700*1250*1900 | 1700*1300*1920 | 1750*1350*1980 | 1950x1700x2030 | 1950x1700x2030 | |
1: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1. What’s your Industrial Voltage?
2. We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3. If need CIF Price, please kindly tell us the port of destination.
