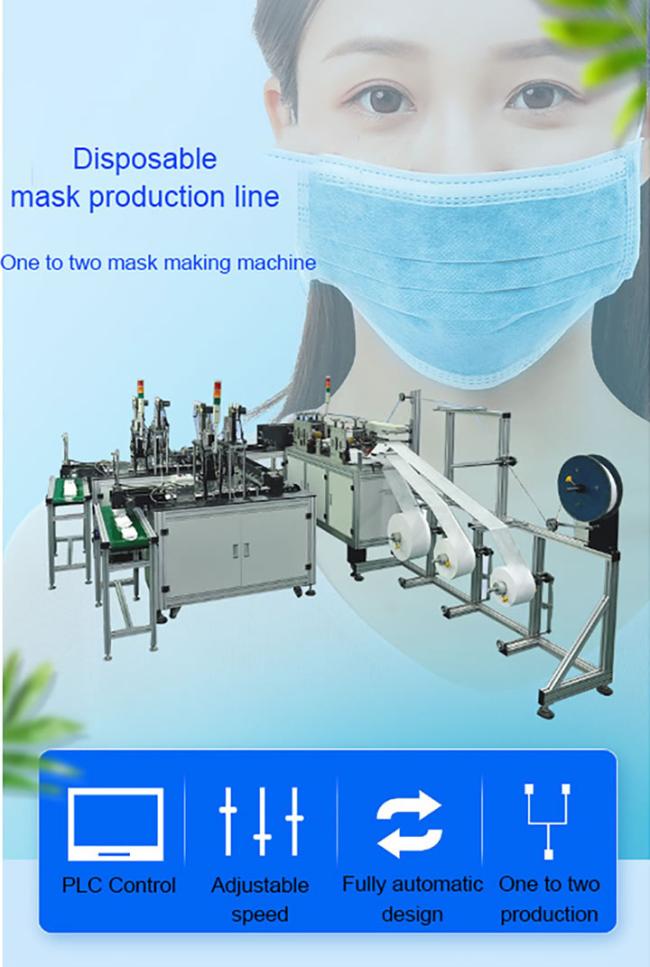

Fully Automatic Disposable Medical Surgical Face Mask Machine Face Mask Making Machine
Fully Automatic Disposable Medical Surgical Face Mask Machine, Face Mask Making Machine
This machine is mainly used for automatic forming of flat masks. After the entire roll of fabric is unrolled, it is driven by rollers, and the fabric is automatically folded and wrapped. Nose bridge rolls unrolled by traction. Cut and import into the hemmed fabric, both sides are welded to seal by ultrasonic welding, and then through the ultrasonic side seal. It is cut and shaped by a cutter ; transported to the two mask ear band welding stations through an assembly line. The final mask is formed by ultrasonic welding. After the mask is made, it is transported to flat belt line and collected.
1.Adopting aluminum alloy rack which is more light and solider
2. High stability
3. One output line , high capacity
4. Fully Automatically,save labor,just need one worker to operate
5.Material in unwinding part use up,the machine can automatically stop.
| Machine dimension | 6100mm*3100mm*1900mm |
| Speed | 120-160pcs/min |
| Voltage | 220v 60Hz |
| Total power of equipment | 8kw |
| Equipment weight | 2050kg |
