Automatic N95 Mask Machine Ultrasonic Non-Woven Face Mask Machine
Automatic n95 mask machine Ultrasonic Non-woven face Mask Machine
This equipment is a full-automatic one-time plane mask forming machine, which is used for the forming of one-time rectangular ear hanging three drawer mask. It can complete the automatic feeding, moulding, folding, pressure welding and ear band welding of the machine.This product is used for the production of folding mask production line fully automatic machine,using ultrasonic technology, three to five layers of PP non-woven fabrics, meltblown fabrics, activated carbon and filter materials are fused, non-woven fabrics are fused, ear bands are fused, printed, folded, edge sealed and rolled, can produce 3m 9001,9002 and other folding masks. According to the raw materials used, the production of masks can reach such as FFP1, FFP2, N95 and other different standards, the whole process without manual operation, all by mechanical production, production is finished.
| Air pressure | 6Kg/cm3 |
| Working supply voltage | 220V |
| Power frequency | 50HZ/60HZ |
| Total power of equipment | 10KW |
| Ultrasonic frequency | 15-20KHZ |
| Max. feeding width | 200mm |
| production efficiency | 20-50 pcs/ min |
| Operator | 1 person |
Equipment composition
1, the ear belt direction and the style may according to the customer request to Equipment
2, the output is high, according to customer requirements to produce 1-5 layer mask
3, mask folding position can be adjusted
4, Computer Program Control, photoelectric detection device, high stability, low failure rate
5, the whole machine adopts aluminum alloy structure, beautiful, strong and rustless .
Product configuration and characteristics: This machine high degree of automation, no manual operation after, through PLC programming control,can achieve mask embossing, ear band welding, folding, opening, cutting edge, nose Bar built-in, printing, one-time molding, a special production process to clear lines, in production without deformation, the utility model can minimize the material waste, and effectively ensures the quality of the mask produced.
Work flow:

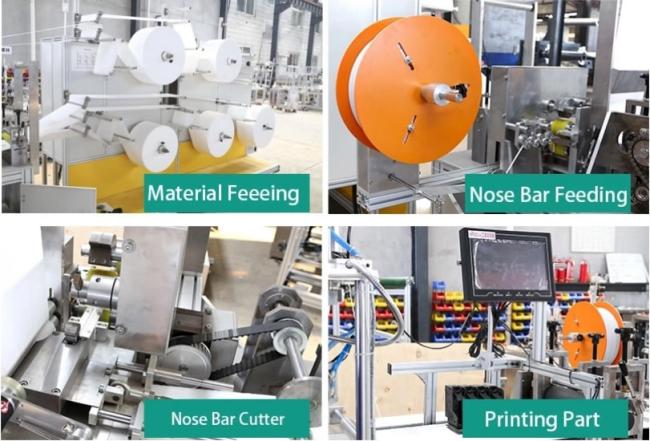

ultrasonic welding → nose bar feeding → ear band welding → non-woven fabric folding → ultrasonic welding → cutting →Conveyor belt loads
finished mask→ finished product stack.
