Mask Machine Production Line Automatic Ultrasonic Kn95/N95 Face Mask Machine

Mask machine production line automatic ultrasonic kn95/n95 face mask machine

The production equipment of the N95 mask machine is a complete set of assembly line equipment including mask forming, mask blanking, mask cutting, ear band welding, upper nose bridge strip, printing, and breathing valve welding. Among them, the mask molding and mask production are all fully automated. Ultrasonic equipment, mask blanking and cutting can be completed by one machine, greatly improving production efficiency.

1. The equipment is equipped with Max6 sets of cloth unwinding and a roll diameter of Max600mm;
2. Nose bar welding module: including the functions of nose bar unwinding, nose bar leveling, fixed length conveying, cutting and welding;

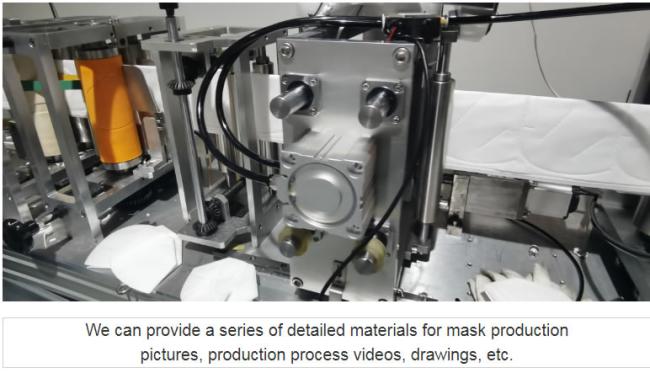

3. Fabric compound roll welding unit: adopts ultrasonic welding head and steel mold welding method, roller parallelism and position are accurately adjusted during welding, and the welding system has cooling function;
4. Ear strap welding unit: The ear strap welding of this equipment adopts the ear strap type (non-head-mounted), the whole roll is loaded, after driving and tension control, the fixed length is cut, the length of the ear strap is adjustable, and the ultrasonic welding is used. Welding firmly;
5. The material driving unit adopts a servo motor to control the main driving roller to drive the cloth, running smoothly, and the pressure is precisely adjustable;
6. Forming welding unit: ultrasonic welding is used, the welding is firm, the pattern is clear, the pressure of the welding system is adjustable, the welding system has a cooling device, and the technical parameters of the ultrasonic welding system are adjustable;
7. Forming and cutting unit: rolling cutter wheel, cutter pad wheel, adjustable pressure, cutting force material: high speed steel.
8. Waste separation unit, the waste automatically falls into the frame;

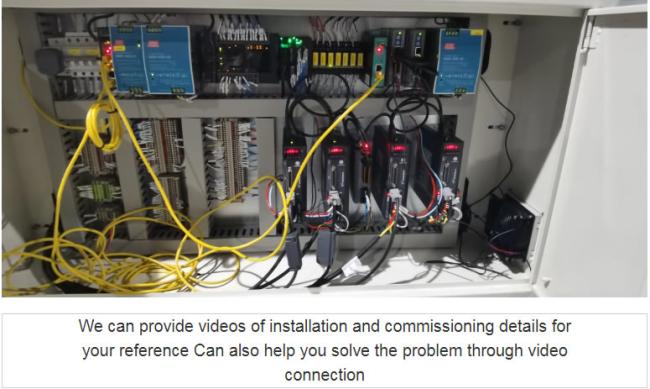

9. Control system: The equipment includes PLC control system and touch screen operating system.
