Hot selling Single phase 32A 1P DIN Rail Digital Power Energy meter/kWh meter

Price Negotiable
Price: $9.00/pieces
MOQ: Negotiable
Delivery Time: Negotiable
Brand: Customized
Product Description
Technical parameter
Type Accuracy Rated voltage Rated current Starting current(A) Insulating performance
RH18S Class 1.0

220V

230V

5(20)A 5(25)A 5(30)A 5(32)A

0.02

AC voltage 4kv for 1 mimute,
1.2/50us waveform impulse voltage 6kv.

Note

If you need different reference voltage or current specification, please advisory us.

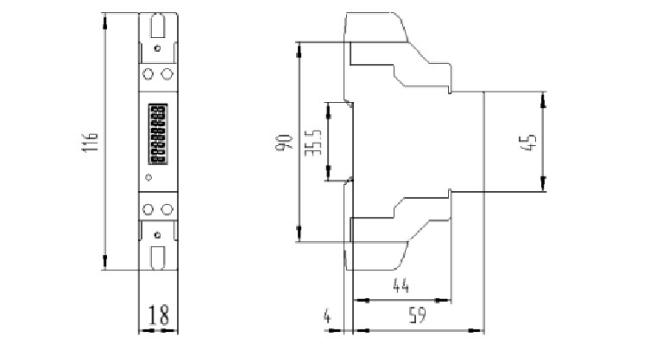

Installation method

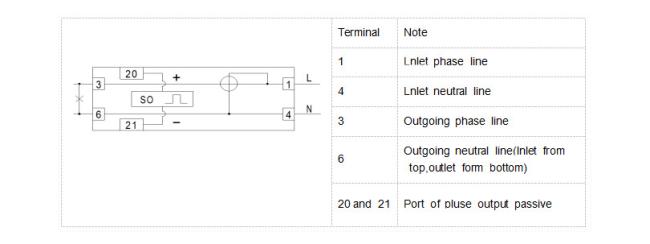

Wiring diagram

Type S
