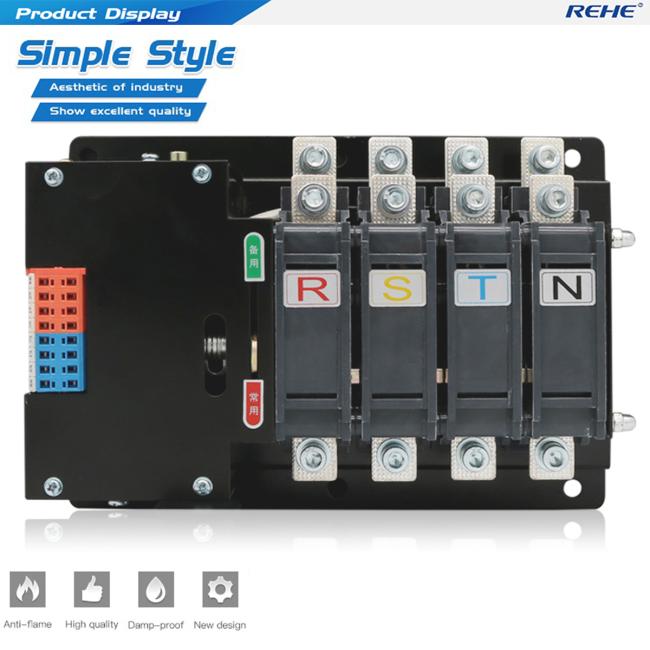

Hot Sale ATSQ1-M series 3P/4P AC400V Dual Automatic Transfer Switch 630A-2000A

Price Negotiable
Price: $100.00 - $1,000.00/pieces
MOQ: 10 pieces
Delivery Time: Negotiable
Brand: Customized
Product Description
Foreword

Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

Summary

This product is suitable for AC 415V, the rated frequency is 50 Hz, DC 250V and below. All specifications have 3-pole, 4-pole, 400A and below have 2-pole products. This product is mainly used for the first class load specified by the state, and is widely used in fire fighting, post and telecommunications, hospitals, hotels, high-rise buildings, industrial assembly lines, and television stations that need to be connected to important parts of the power supply. The main and backup power sources can be power grids and power grids, and automatic start Generator sets, battery packs, etc.

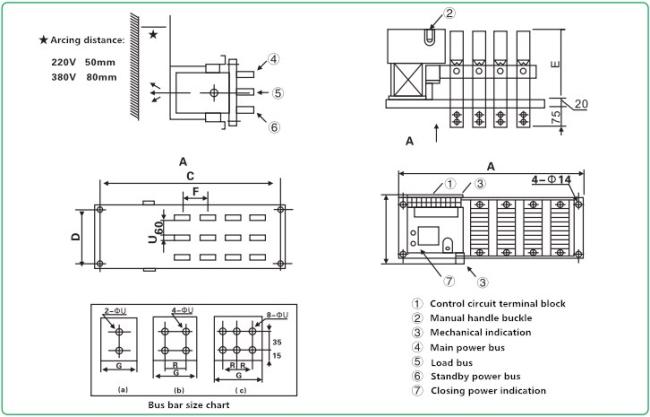

Dimension

Model RTSQ1-630M RTSQ1-800M RTSQ1-1000M RTSQ1-1250M RTSQ1-1600M RTSQ1-2000M
Rated current 630 800 1000 1250 1600 2000
Operating current 16 16 16 16 16 16
Rated short time withstand current 15 18 20 25 32 40
Poles 3P/4P 3P/4P 3P/4P 3P/4P 3P/4P 3P/4P
Weight (kg) 37/42.5 39/46 41/48 48/57 56/67 64/65.5
Operating cycle 15 20 25 25 25 50
