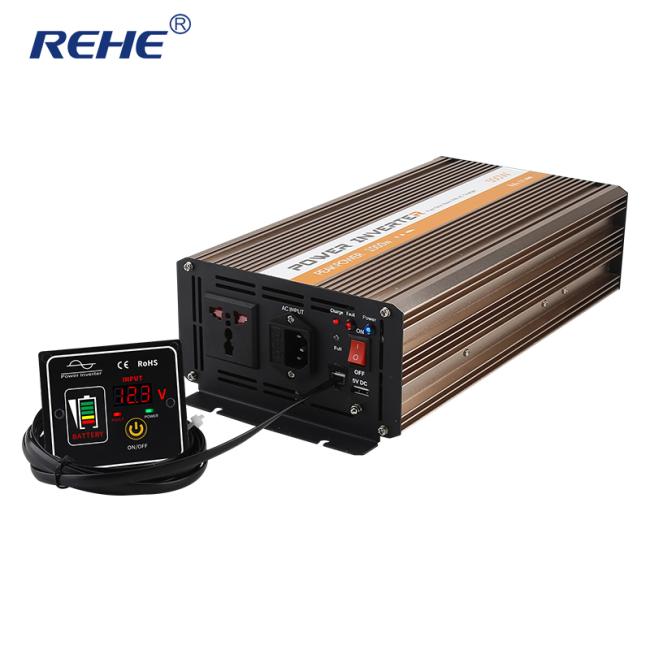

500W Peak1000W Pure Sine Wave Inverter Power Invertor Solar Inverter
Price:
$91.00 - $105.00/pieces
MOQ:
10 pieces
Delivery Time:
Negotiable
Brand:
SUCHEN
Product Description
| Products Specification: | ||||||
| Model | CS12P500-1C | CS12P500-2C | CS24P500-1C | CS24P500-2C | CS48P500-1C | CS48P500-2C |
| Rated Power | 500W | |||||
| Surge Power | 1000W | |||||
| Input Voltage | 12VDC | 24VDC | 48VDC | |||
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| Switching mode | City power priority | |||||
| Switching time | ≤10ms | |||||
| Charging current | 20A | 10A | 5A | |||
| Charging mode | Three stage charging mode | |||||
| Input voltage range | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V 1000MA | |||||
| Frequency | 50HZ±3 or 60HZ±3 | |||||
| Output Waveform | Pure sine wave | |||||
| Soft Start | YES | |||||
| THD/AC Regulation | THD<3%(Linear Load) | |||||
| Output Effciency | 94.2% MAX | |||||
| No Load Current | 0.8A | 0.8A | 0.6A | 0.6A | 0.3A | 0.3A |
| DC Voltage Range | 10V-15.5V | 10V-15.5V | 21.5V-28V | 21.5V-28V | 41.5V-59.5V | 41.5V-59.5V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | |||
| low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | |||
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | |||
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | |||
| Over Voltage Recovery | 14.8±0.5V | 29±0.5V | 59±1V | |||
| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | |||||
| Working Temperature | (-10℃+60℃ Civil class,-25℃+60℃ technical grade,-40℃+70℃ army grade) | |||||
| Storage Temperature | (-30℃ - 70℃) | |||||
| Humidity | 90% MAX,Non-condensing | |||||
| Warranty | 2 Years | |||||
| Net Dimension | 365*165*90MM(LxWxH) | |||||
| Package Dimension | 475*225*150MM(LxWxH) | |||||
| N.W./Unit/G.W./Unit | 2.8kg/3.24Kg | |||||
| Ctn | 4PCS | |||||
| Meas./Ctn | 495*480*315MM(LxWxH) | |||||
| G.W./Ctn | 13.76kg | |||||
