1200mm Ricoh G5I Printhead Digital Printing Machine Head 900x 900mm 5 - 10sqm/h
Ricoh G5I Printhead 9090 9012 Print Width Digital Printing Machine Inkjet Led UV Flatbed Printer For Glass Phone Case A
This Ricoh FX-9090 /FX-9012equipment is a high-precision large UV flatbed machine, can be equipped with 2-4 Ricoh G5I nozzle, Printing height up to 500mm; To achieve a high precision output of 720*1200 DPI to meet customer production requirements; 9090 the maximum width of printing is 900*900mm,9012he maximum width of printing is 900*1200mm. Print mode CMYK, CMYK+W, CMYK+W+V, CMYK+WW+V can print crystal 8D and relief effect. Products commonly known as universal printer, can print a wide range of media such as: glass, acrylic, wood, ceramic tile, metal plate, PVC board, ABS, lamp, soft film, plastic shell and other materials. The product is suitable for many fields.
|

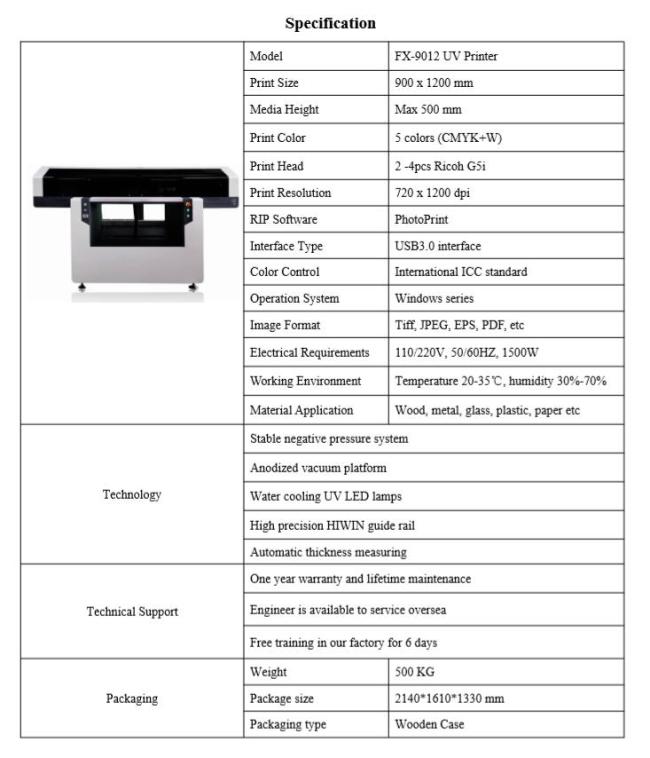

product category |
Flatbed UV Printer |
|
model |
FX9090 FX9012 |
|
Quantity of nozzles |
2-3 PCS G5I(2 print heads are standard) |
|
Print Head |
G5I |
|
The thickness of the medium |
1-500mm(customizable) |
|
Printing size |
900*900mm Max |
|
Productivity: |
5-10 sqm/h |
|
Ink Set: |
K/Y/C/ M/W/LC / LM / Varnish |
|
Print accuracy: |
720*600dpi/720*90dpi/720*1200dpil |
|
Machine power: |
1000W |
|
Ink: |
UV curable |
|
Interface |
USB 3.0 |
|
Power supply |
AC 220 V ± 5%, Hz≥20A |
|
Dimensions |
Machine(L*W*H):2100*1300*1300mm |
|
Weight |
400KG |
|
Electrical requirements |
Temperature 20-35°C Humidity 30%- -70% |
FX9090
FX9012
