Ricoh G5 Digital UV Printer Printhead 3.2m Dtg Shirt Printer For Glass Phone Case Acryli

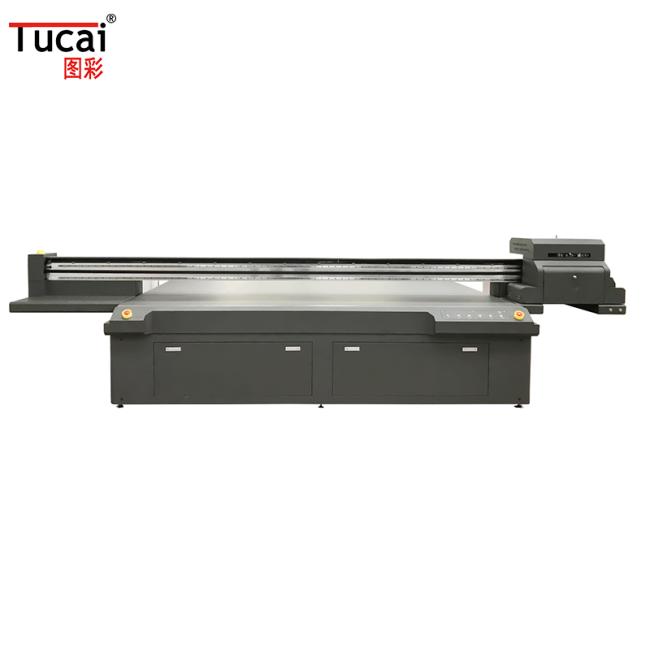

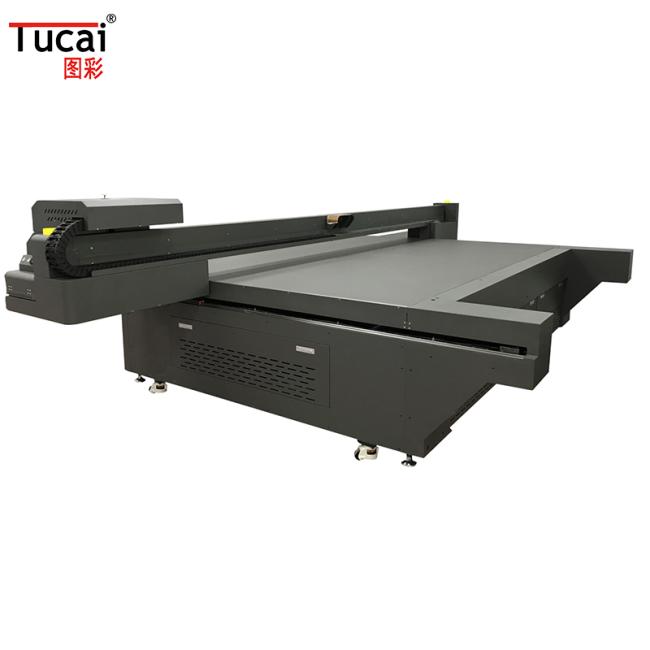

New Design 3.2m Print Width  3220 UV Flatbed Printer

Ricoh FXIIIG5-3220 equipment is a high-precision large UV flatbed machine, can be equipped with 2-16 Ricoh G5 nozzle, printing speed up to 60m2/h;  Achieve high precision output up to 720*1200 DPI to meet customer production needs;  The maximum width of print is 3200mm*2000mm.  Print mode has 4C/6C/4C+W/6C+W/4C+W+V/6C+W+V/ double 4C/ double 6C/ can print crystal 8D and embossed effect.  Products commonly known as universal printer, can print a wide range of media such as: glass, acrylic, wood, ceramic tile, metal plate, PVC board, ABS, light sheet, soft film, plastic shell and other materials.  Products are suitable for many fields, such as: advertising, home decoration building materials, electronic 3C, handicrafts and other industries.

1. Imported ricoh G5 steel sprinkler head

One nozzle two channels, standard with 3, WW+CM+YK

Can add sprinkler head, color sprinkler head OR white sprinkler head OR light oil sprinkler head, up to eight color printing W+C+M+Y+K+Lc+Lm+V

2, all steel structure integral gantry milling frame

3. Open mold cast aluminum beam, calibrated by marble platform

4, Japan THK high precision silent double linear guide rail

5, Japan Fuji servo motor

6. Taiwan Shangyin high precision grinding screw

7. Segmental adsorption platform

8. German Eagus drag chain

9, genuine American PP software (one machine one code)
