3in1 Brazed Type Heat Exchanger
| Type | B(mm) | C(mm) | D(mm) | E(mm) | Thickness(mm) | Weight(Kg) | Max Flow (m3/h) | Design Pressure(Mpa | |
|
AL14 |
77 |
42 |
206 |
172 |
44+2.3N+6 | 1.06+1.4+0.06N |
8 |
gas side/flourine side |
1.6/3.0 |
| 50+2.3N+6 | 1.19+1,4+0.06N | ||||||||
| 80+2,3N+6 | 1.85+1,4+0.06N | ||||||||
|
AL26 |
111 |
50 |
310 |
250 |
50+2.32N+8 | 1.93+2.6+0.12N |
18 |
gas side/flourine side |
1.6/3.0 |
| 75+2,32N+8 | 2.77+2.6+0.12N | ||||||||
| 100+2.32N+8 | 3.64+2.6+0.12N | ||||||||
|
AL95 |
189 |
92 |
616 |
519 |
85+2.7N+12 | 6.4+15.6+0.44N |
42 |
gas side/flourine side |
1,6/3.0 |
| 06+2.7N+12 | 7.8+15.6+0.44N | ||||||||
| 212+2.7N+12 | 17.9+15.6+0.44N | ||||||||
| 276+2.7N+12 | 22.2+15.6+0.44N | ||||||||
Product Introduce :
3IN1 BRAZED PLATE HEAT EXCHANGER , we can call it air drier plate heat exchanger , short name with refrigeration dryer .
inlcude evaporator , gas-water separator and precooler .
Precooler :
Heat exchanger for cold air and high temperature air , save energy dissipation for compressor . non-condensation in outlet and directly put in use.
Evaporator:
The water congealed which from compressed air . High Efficiency , Low Dew , Low Pressure Drop .
Gas-water Separator :
Seperate gas and water , dried air . No blocking , easy maintain .
Product Feature:
Three-In-One , High heat transfer efficicency , volume small , save space , fully remove water , Eliminate clogging problems .

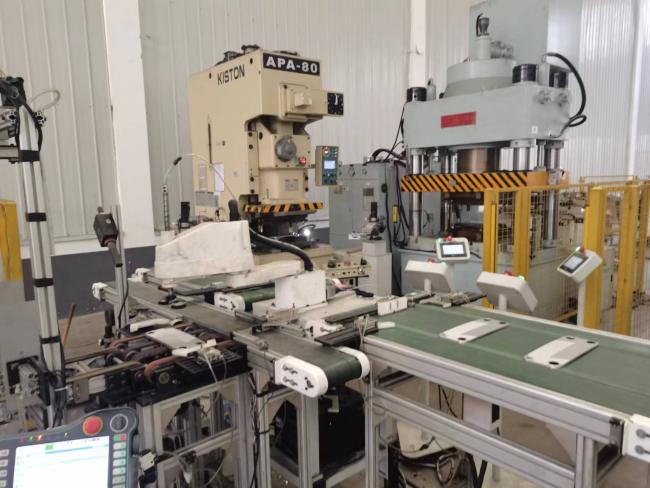

Workshop:

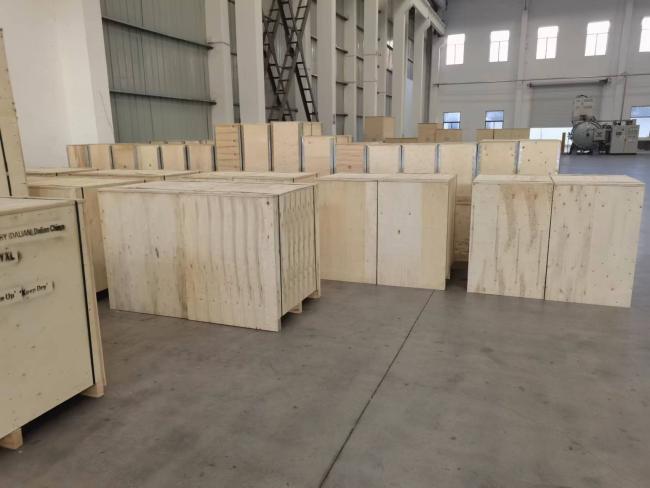

Package Area :

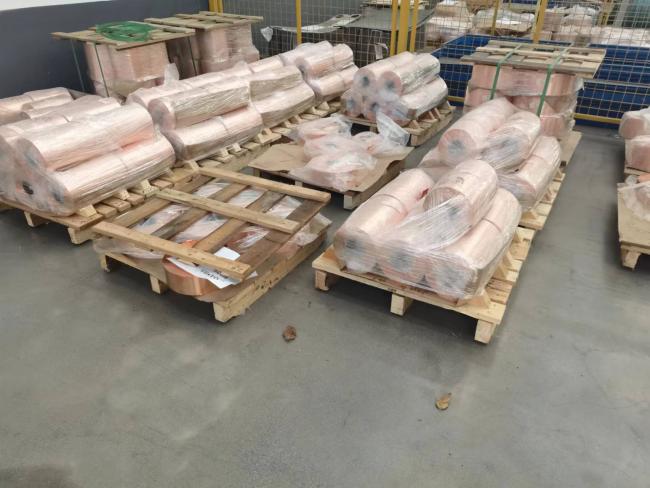

Copper Material :

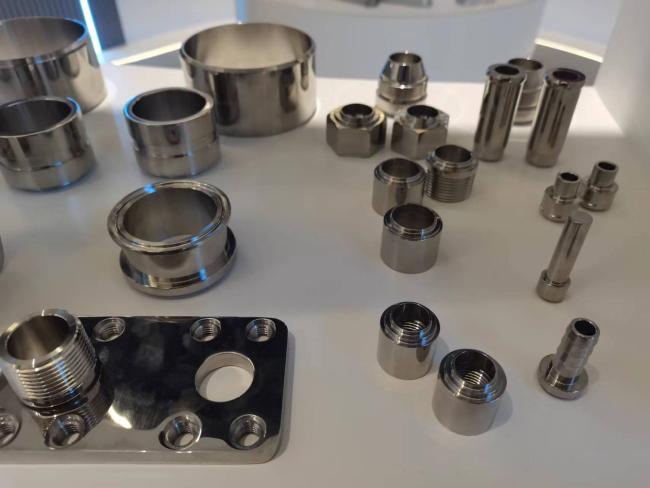

Parts :
