AIR CROSS BRAZED PLATE HEAT EXCHANGER TYPE AC36 HS CODE 8419500090
Price:
Negotiate
MOQ:
1pcs
Delivery Time:
Within one week
Brand:
Tenkai
Product Description
AIR CROSS BRAZED PLATE HEAT EXCHANGER TYPE AC36 HS CODE 8419500090
Introduction :
Air Cross Brazed Heat Exchanger was made from stainless steel sheet of decussation flow path through vacuum brazing , Its asymmetric design which apply in specified flue gas constant flow on one side and high density medium flow on another side . system design can assemble with single component , also can assemble one system with more air cross heat exchanger .
| TYPE | B(mm) | C(mm) | D(mm) | E(mm) | THICKNESS(mm) | WEIGHT(Kg) | DESIGN PRESSURE(Mpa) |
| AC35 | 124 | 52 | 286 | 227 | 6+3.23N | 1.64+0.124N | 3 |
| AC36 | 124 | 52 | 286 | 227 | 6+3.23N | 1.64+0.124N | 3 |
| AC116 | 213 | 621 | 476 | 12+2.26N | 12+0.44N | 1.5 | |
| AC150 | 202 | 771 | 610 | 12+2.24N | 15+0.5N | 1.5 | |
| AC340 | 490 | 328 | 780 | 578 | 12+2.08N | 36+1.17N | 1.5 |

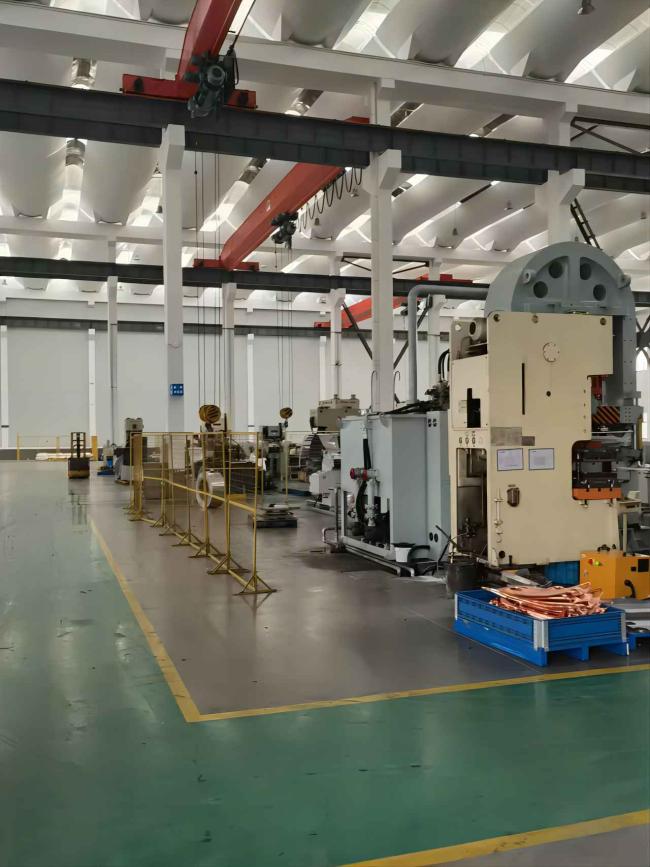

Workshop :
