Model AC340 Air Cross Brazed Plate Heat Exchanger Copper Material Use In Hvac Industry

Introduction :

Air Cross Brazed Heat Exchanger was made from stainless steel sheet of decussation flow path through vacuum brazing , Its asymmetric design which apply in specified flue gas constant flow on one side and high density medium flow on another side . system design can assemble with single component , also can assemble one system with more air cross heat exchanger .

Product Features:

1. High Efficiency: The soldered plate design ensures efficient heat transfer between the flue gas and the cooling medium, maximizing heat recovery.
2. Compact Structure: The compact arrangement of the metal plates allows for a large heat transfer surface area within a relatively small footprint, making it suitable for applications with limited space.
3. Low Pressure Drop: The design minimizes pressure drop across the heat exchanger, reducing energy consumption and optimizing system performance.
4. Reliable Operation: The soldered joints between the plates provide excellent durability and resistance to thermal stress, ensuring long-term and reliable operation.

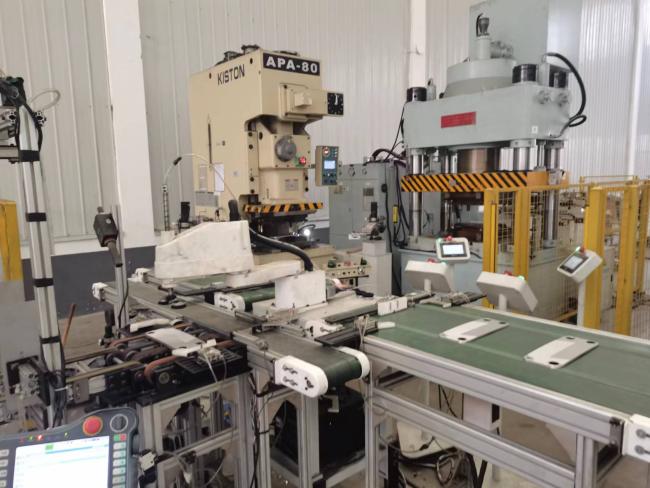

Workshop :

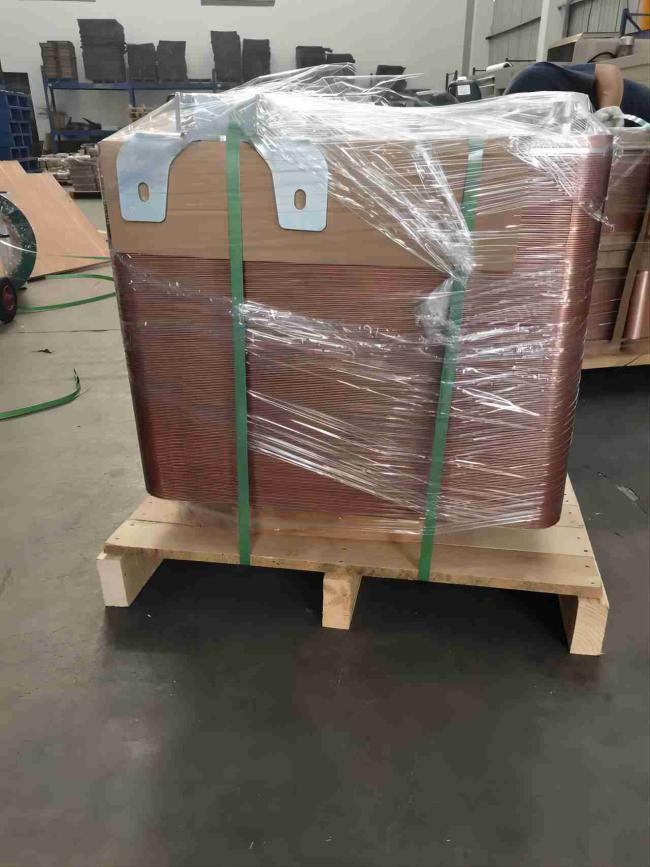

Package:
