Gasketed Plate Style Heat Exchanger Apply To Sterilization And Cooling In Soy Sauce
Apply to Sterilization and Cooling in Soy Sauce C100B Series Gasket Plate Heat Exchanger Stainless Steel Material
Introduction :
Heat Exchanger in common use heating cryogenic fluid or cooling high temperature fluid during the producing in petroleum, chemical industry, light industry, pharmacy, energy etc. transmit liquid to steam through nebulization . Heat Exchanger is elementary component such as heater, cooler , condenser and also the part of tech equipment .
Application :
-
Food and beverage industry:
Salt Production in Food Industry
Sterilization and Cooling in Dairy Products
Sterilization and Cooling in Soy Sauce
Sterilization and Cooling in Vinegar Production
Heating and Cooling of Animal and Vegetable Oils
Heating and Cooling in Beer Production for Beer and Malt Extracts
Sugar Production
Gelatin Concentration, Sterilization, and Cooling
Manufacturing of Sodium Glutamate
-
Pharmaceutical industry: Detachable plate heat exchangers are utilized in pharmaceutical production for heat sterilization, cooling, crystallization, concentration, and solvent recovery applications.
In summary, detachable plate heat exchangers play a vital role in various industrial sectors, enabling heat recovery, energy conservation, and process optimization.
Product Features:
- Easy Disassembly and Reassembly: The detachable plate heat exchanger allows for convenient access to the individual plates, facilitating cleaning, maintenance, and inspection operations.
- High Heat Transfer Efficiency: The special patterns on the plates promote turbulent flow and maximize the heat transfer surface area, resulting in efficient heat exchange and improved performance.
- Compact Design: The compact arrangement of the plates enables a large heat transfer surface area within a small footprint, making it suitable for applications where space is limited.
- Flexibility and Scalability: The modular design allows for easy customization and expansion by adding or removing plates to meet specific heat transfer requirements.
- Versatile Applications: Detachable plate heat exchangers are widely used in various industries, including HVAC systems, refrigeration, food processing, chemical processing, power generation, and oil and gas industries.
| TYPE | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Height ( mm ) ( from middle of bottom to ground )(mm) |
MAX.LC (mm) |
Connector Path (mm) | Max Flow (m3/h) | Design Pressure (Mpa) | Max Pieces |
| i60B | N(1.95+X) | 296 | 140 | 827.5 | 640 | 102.5 | 1200 | 50 | 36 | 1.0 | 250 |
| i60H | N(3.0+X) | 296 | 140 | 827.5 | 640 | 102.5 | 1200 | 50 | 36 | 1.0 | 210 |
| i100B | N(2.5+X) | 420 | 223 | 957 | 719 | 128 | 1600 | 100 | 140 | 1.0 | 280 |
| i100H | N(3.95+X) | 420 | 223 | 957 | 719 | 128 | 1600 | 100 | 140 | 1.0 | 200 |
| 150B | N(2.5+X) | 575 | 298 | 1640 | 1294 | 163.3 | 1500 | 150 | 360 | 1.0 | 260 |
| 150H | N(3.95+X) | 575 | 298 | 1640 | 1294 | 163.3 | 1500 | 150 | 360 | 1.0 | 180 |
|
|
|||||||||||

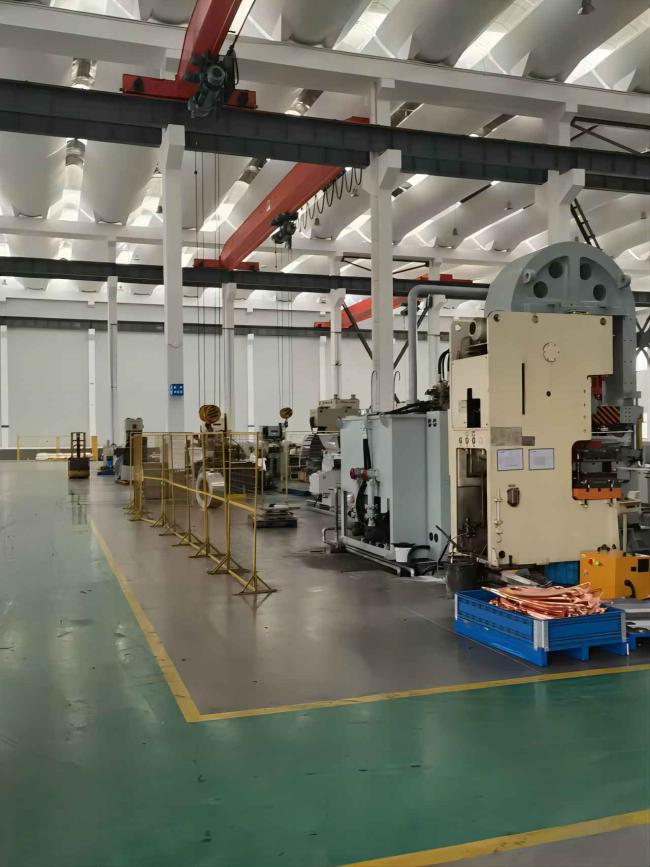

Workshop :

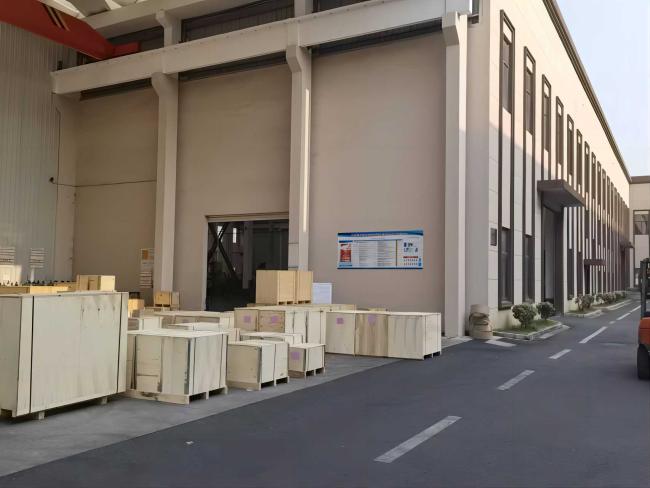

Package :
