Vinegar Production Gasketed Plate Heat Exchanger 140m3/H C100H Series
Apply to Sterilization and Cooling in Vinegar Production C100H Series Gasket Plate Heat Exchanger
Introduction :
Stainless Steel Plate Heat Exchanger is a heat transfer device that consists of a series of individual plates that can be easily disassembled and reassembled. Each plate has special patterns that create flow channels for the hot and cold fluids, allowing efficient heat exchange to occur. The detachable design offers flexibility for maintenance, cleaning, and modifications.
The multi-stage plate-type pasteurizer, constructed entirely of stainless steel, is extensively utilized in the food industry for high-temperature sterilization of heat-sensitive materials, including milk, soy milk, fruit juice, ice cream, yellow wine, beer, and various other liquid products
Application :
-
Food and beverage industry:
Salt Production in Food Industry
Sterilization and Cooling in Dairy Products
Sterilization and Cooling in Soy Sauce
Sterilization and Cooling in Vinegar Production
Heating and Cooling of Animal and Vegetable Oils
Heating and Cooling in Beer Production for Beer and Malt Extracts
Sugar Production
Gelatin Concentration, Sterilization, and Cooling
Manufacturing of Sodium Glutamate
-
Pharmaceutical industry: Detachable plate heat exchangers are utilized in pharmaceutical production for heat sterilization, cooling, crystallization, concentration, and solvent recovery applications.
-
Residential heating areas
-
Mechanical cooling applications
-
Power plant cooling systems
Product Features:
- Easy Disassembly and Reassembly: The detachable plate heat exchanger allows for convenient access to the individual plates, facilitating cleaning, maintenance, and inspection operations.
- High Heat Transfer Efficiency: The special patterns on the plates promote turbulent flow and maximize the heat transfer surface area, resulting in efficient heat exchange and improved performance.
- Compact Design: The compact arrangement of the plates enables a large heat transfer surface area within a small footprint, making it suitable for applications where space is limited.
- Flexibility and Scalability: The modular design allows for easy customization and expansion by adding or removing plates to meet specific heat transfer requirements.
- Versatile Applications: Detachable plate heat exchangers are widely used in various industries, including HVAC systems, refrigeration, food processing, chemical processing, power generation, and oil and gas industries.
- Multi-stage design: Our sanitary plate heat exchanger can also be implemented as a multi-stage solution, where multiple heat exchangers are combined into a single installation, separated by intermediate partitions.
| TYPE | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Height ( mm ) ( from middle of bottom to ground )(mm) |
MAX.LC (mm) |
Connector Path (mm) | Max Flow (m3/h) | Design Pressure (Mpa) | Max Pieces |
| i60B | N(1.95+X) | 296 | 140 | 827.5 | 640 | 102.5 | 1200 | 50 | 36 | 1.0 | 250 |
| i60H | N(3.0+X) | 296 | 140 | 827.5 | 640 | 102.5 | 1200 | 50 | 36 | 1.0 | 210 |
| i100B | N(2.5+X) | 420 | 223 | 957 | 719 | 128 | 1600 | 100 | 140 | 1.0 | 280 |
| i100H | N(3.95+X) | 420 | 223 | 957 | 719 | 128 | 1600 | 100 | 140 | 1.0 | 200 |
| 150B | N(2.5+X) | 575 | 298 | 1640 | 1294 | 163.3 | 1500 | 150 | 360 | 1.0 | 260 |
| 150H | N(3.95+X) | 575 | 298 | 1640 | 1294 | 163.3 | 1500 | 150 | 360 | 1.0 | 180 |
|
|
|||||||||||

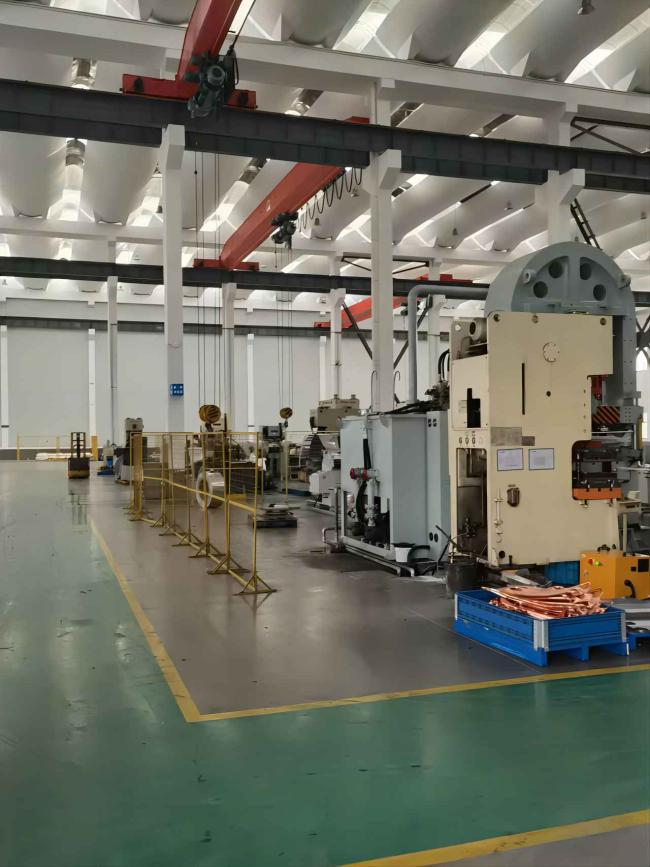

Workshop :

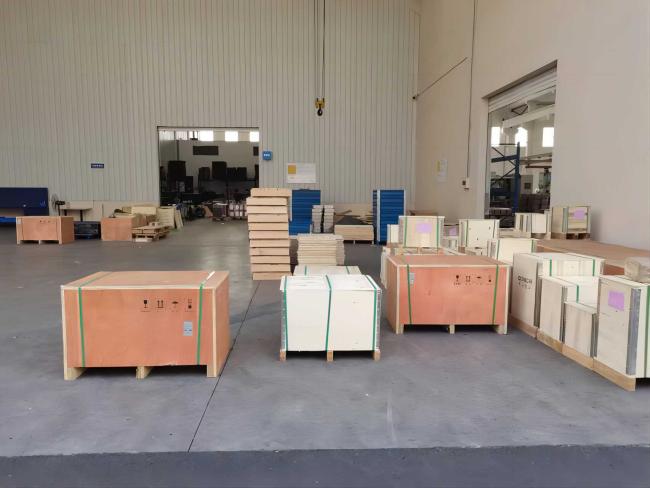

Package :

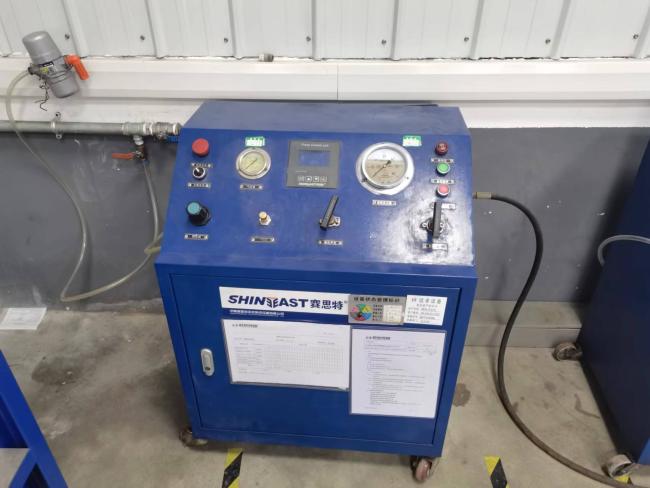

Lab Room :
