Chemical Industry Gasketed Heat Exchanger Application In Cooling Quenching Liquids
Application in Cooling Quenching Liquids,Presses,Industrial Lubricating oil E200H Series Gasket Plate Heat Exchanger
Introduction :

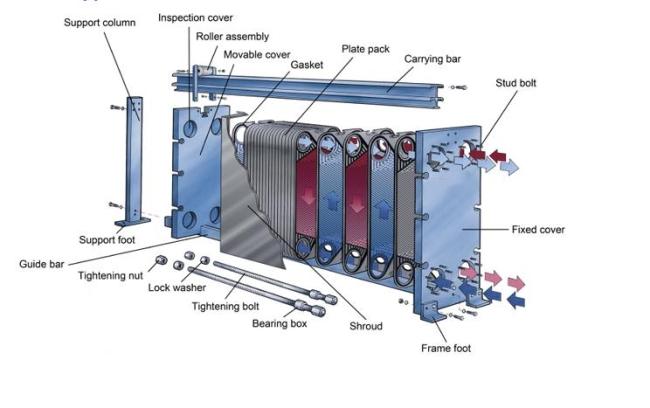

Gasket Plate Heat Exchanger is a heat transfer device that consists of a series of individual plates that can be easily disassembled and reassembled. Each plate has special patterns that create flow channels for the hot and cold fluids, allowing efficient heat exchange to occur. The detachable design offers flexibility for maintenance, cleaning, and modifications.
Application :
HVAC industry, Chemical industry, Power generation industry, Oil and gas industry, Metallurgical industry, Pulp and paper industry, Textile Industry, Paper making , Concentrated heating, Electric power industry, Oil prodution industry, Marine, etc .
Apply in machinery manufacture :
- Cooling of Various Quenching Liquids
- Cooling of Presses
- Cooling of Industrial Mainframe Lubricating Oil
- Heating of Engine Oil
Product Features:
- Easy Disassembly and Reassembly: The detachable plate heat exchanger allows for convenient access to the individual plates, facilitating cleaning, maintenance, and inspection operations.
- High Heat Transfer Efficiency: The special patterns on the plates promote turbulent flow and maximize the heat transfer surface area, resulting in efficient heat exchange and improved performance.
- Compact Design: The compact arrangement of the plates enables a large heat transfer surface area within a small footprint, making it suitable for applications where space is limited.
- Flexibility and Scalability: The modular design allows for easy customization and expansion by adding or removing plates to meet specific heat transfer requirements.
- Versatile Applications: Detachable plate heat exchangers are widely used in various industries, including HVAC systems, refrigeration, food processing, chemical processing, power generation, and oil and gas industries.
| TYPE | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Height ( mm ) ( from middle of bottom to ground (mm) |
MAX,LC mm) |
Connector Path (mm) | Max Flow (m3/h | Design Pressure (Mpa) | Max Pieces |
| E60H | N(4+X) | 400 | 203 | 704 | 380 | 188 | 1200 | 65 | 50 | 1.6 | 147 |
| E200H | N(4+X) | 800 | 363 | 1405 | 698 | 360 | 3000 | 200 | 600 | 1.6 | 400 |

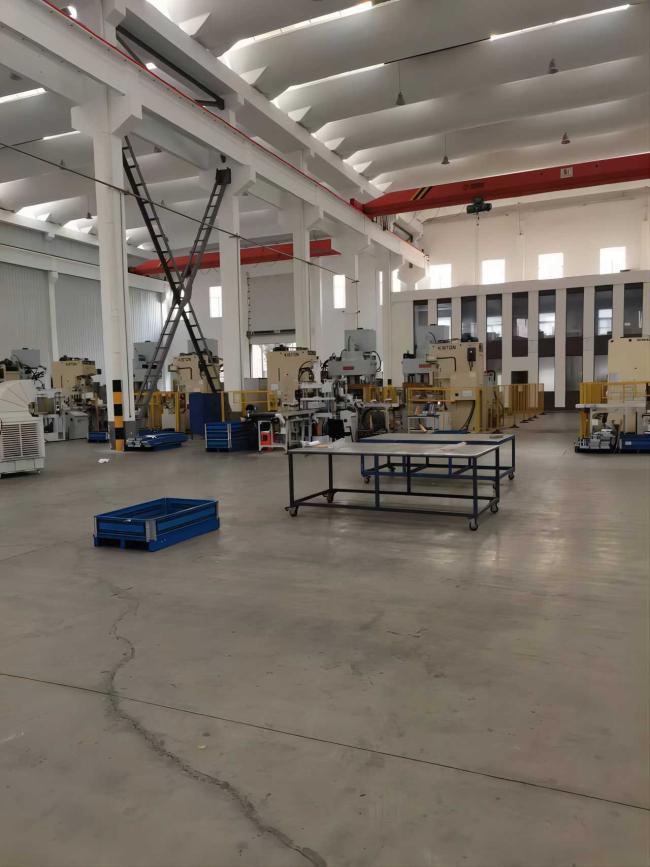

Workshop :

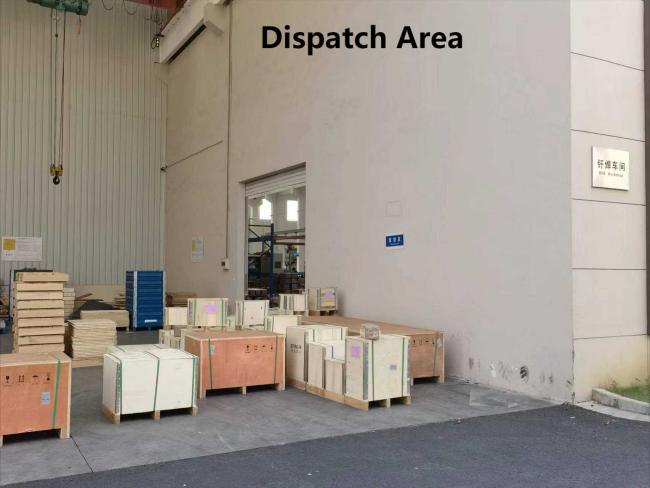

Package :
