100% Stainless Steel Box Type Fusion Bonded Plate Heat Exchanger

corrugated plates pressed from thin metal sheets and assembled with stainless steel frames and clamping bolts, known for its strong corrosion resistance

The working fluid flows through narrow and serpentine channels formed between two plates, while the hot and cold fluids undergo heat exchange across the plate channels

The multi-stage plate-type pasteurizer, constructed entirely of stainless steel, is extensively utilized in the food industry for high-temperature sterilization of heat-sensitive materials, including milk, soy milk, fruit juice, ice cream, yellow wine, beer, and various other liquid products

In addition, the equipment has also been widely adopted in the pharmaceutical industry and the processing of health beverages. It possesses advantages such as small footprint, simple structure, high heat transfer efficiency, high heat recovery rate, and easy disassembly and assembly. Furthermore, it enables flexible modifications to the plate flow arrangement to meet the requirements of different processes. It represents an equipment that combines high efficiency and energy-saving capabilities in a single unit.

Features :

1, Leak Protection

The safety technology of stainless steel plate heat exchanger is a double-wall plate system designed to allow the detection of any leaks, whether on the outside of the heat exchanger. This safety measure ensures that faulty components can be quickly identified and repaired. As all leaks are external and not internal, the media is always kept separated. This makes the double-wall sanitary plate heat exchanger an ideal solution when working with media that should not be contaminated at any cost.

2, Multi-stage design

Our sanitary plate heat exchanger can also be implemented as a multi-stage solution, where multiple heat exchangers are combined into a single installation, separated by intermediate partitions.

3, High standard and easy maintenance

Our heat exchanger solution complies with stringent industry hygiene requirements and adheres to FDA material standards. The plate pressing process ensures high product quality. We ensure the implementation of flow control, temperature configuration, and appropriate residence time for all media during the processing. The design facilitates quick and trouble-free inspection, maintenance, or cleaning, including Clean-in-Place (CIP), with the convenience of a stainless steel or full stainless steel frame.

4, Save energy

Stainless steel plate heat exchangers can significantly reduce energy consumption and recover up to 95% of energy

Advantage :

◆ High heat transfer coefficient

Due to the complex and tortuous nature of the plate channels, the fluid continuously changes its direction, velocity, and generates strong turbulence, resulting in a very low liquid film thermal resistance and achieving high heat transfer coefficients. It is more advanced compared

to shell and tube heat exchangers

◆ compact structure

The plate heat exchanger has a channel gap of only 3-5mm, plate thickness ranging from 0.6-0.8mm, requiring minimal maintenance space. Compared to shell and tube heat exchangers, it occupies only 1/5 to 1/100 of the footprint

◆ Easy to clean and test

To remove and clean the plates or replace damaged plates and gaskets, simply loosen and remove the tightening bolts.

◆ Easy to increase or decrease heat transfer area

To increase or decrease the heat transfer area, simply add or remove the number of plates.

◆ A variety of media heat transfer is possible

In a heat exchanger, if multiple media need to be heat exchanged, it can be achieved by installing intermediate partitions. For example, if three media need to be exchanged, the installation of intermediate partitions can facilitate this process.

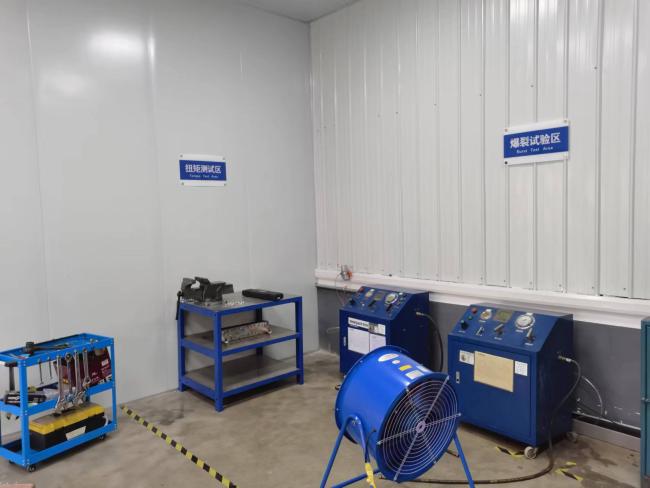

Test Area :

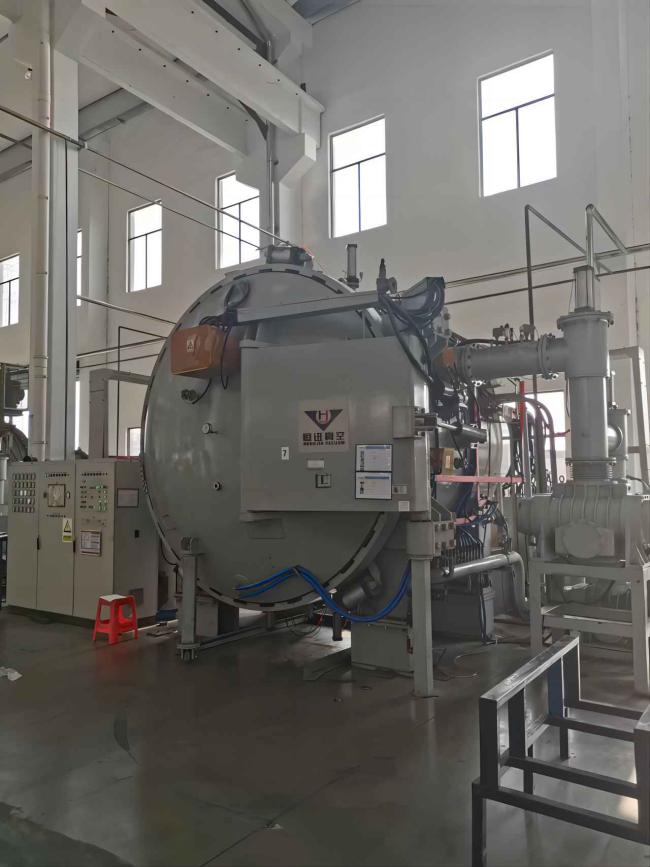

Machine :

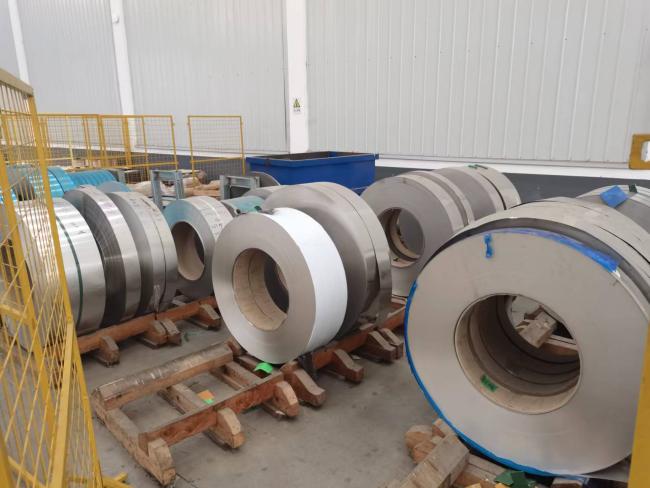

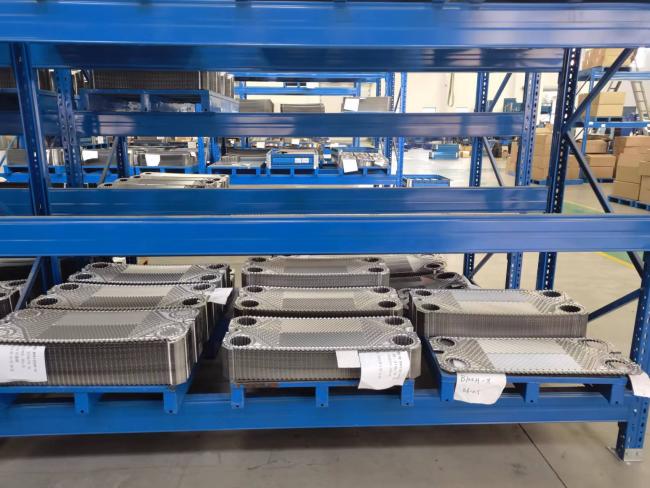

Material Stainless Steel :

Workshop :
