4.5Mpa Industrial Chilled Water Plate Heat Exchanger For Central Air Conditioning
Central Air-Conditioning , Industrial Chiller Copper Brazed Plate Heat Exchanger
What is the copper brazed plate heat exchanger :
A copper plate heat exchanger is a type of heat exchanger that utilizes copper plates as the primary heat transfer surface. It consists of a series of parallel copper plates, typically arranged in alternating layers, with fluid channels in between. The copper plates are sealed together, and the fluid flows through the channels, allowing for efficient heat transfer between the fluids.
Copper Plates: The plates are made of copper due to its excellent thermal conductivity. Copper is chosen for its ability to facilitate efficient heat transfer between the fluids.
| TYPE | B(mm) | C(mm) | D(mm) | E(mm) | THICKNESS(mm) | WEIGHT(Kg) | MAX FLOW (m3/h) | DESIGN PRESSURE(Mpa) |
| UFP 10 | 77 | 42 | 155 | 119 | 9+1.25N | 0.28+0.027N | 4 | 3/4.5 |
| UFP 20A | 93 | 40 | 323 | 269 | 9+1.5N | 1+0.09N | 8 | 3/4.5 |
| UFP 42A | 121 | 68 | 332 | 279 | 10+1.53N | 2.05+0.11N | 18 | 3/4.5 |
| UFP 62FA | 120 | 63 | 527 | 470 | 10+1.98N | 2.379+0.18N | 18 | 3/4.5 |
| UFP 62FB | 120 | 63 | 527 | 470 | 10+1.98N | 2.379+0.18N | 18 | 3/4.5 |
| UFP 95FA | 182 | 92 | 609 | 519 | 12+2.05N | 15+0.36N | 42 | 3/4.5 |
| UFP 95FB | 182 | 92 | 609 | 519 | 12+2.05N | 15+0.36N | 42 | 3/4.5 |

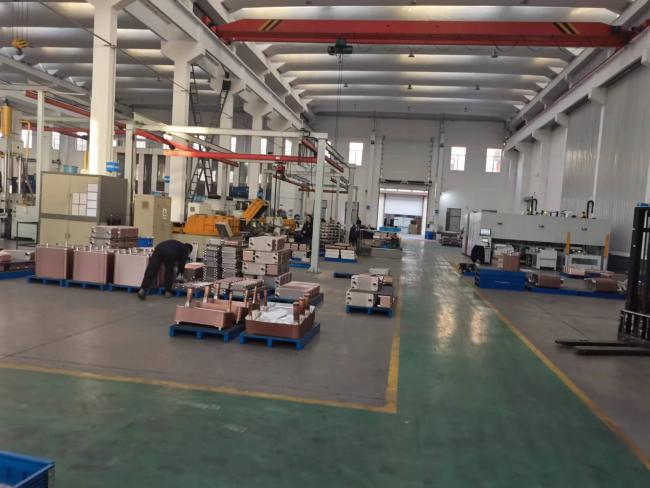

Workshop :

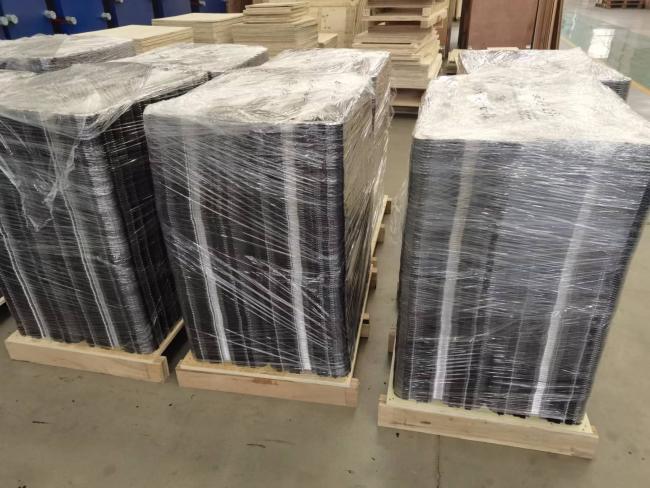

Package Area :
