China 8-20mm High Output Copper Upcast Machine 6000T Continous Casting Machine for sale

8-20mm High Output Copper Upcast Machine 6000T Continous Casting Machine

Price Negotiable

Price: 150,00$-250,000$

MOQ: 1 set

Delivery Time: 60-120 days

Brand: Hongli

Product Description

8-20mm High Output 6000t Upcasting Machine for Oxygen-Free Copper Wire from scrap copper

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

- Motor: SIEMENS, DONGGUAN MOTOR,

- Inverter: YASKAWA, INOVANCE, SIEMENS,

- PLC: Siemens

- Touch Screen: Siemens

- Low-voltage electrical components: Schneider

- Bearings: NSK or SKF

Copper Scrap Solution Comparison
Process	Purity	Scrap Quantity	Product/Purity	Main Equipment
CCR	>95.2%	10KT-50KT/annually	Rod/99.9%	Furnace, Casting/rolling, fume treatment
Adding to upcast after refinery	>96%	1-3KT/annually	Rod/99.9%	Refining furnace, Up casting line
Adding to upcast without refinery	>99.5%	5-20KT/annually	Rod/99.95%	Up casting line
Direct Electrolysis	>96%	<2 KT/a nnually	Cathode/99.95%	Electrolysis system, water purification
Anode Electrolysis	90-92%	5KT-150KT/annually	Cathode/99.97%	Refinery furnace, fume treatment,anode caster, electrolysis system, water purification

Componets of Up Ward Continuous Casting Machine

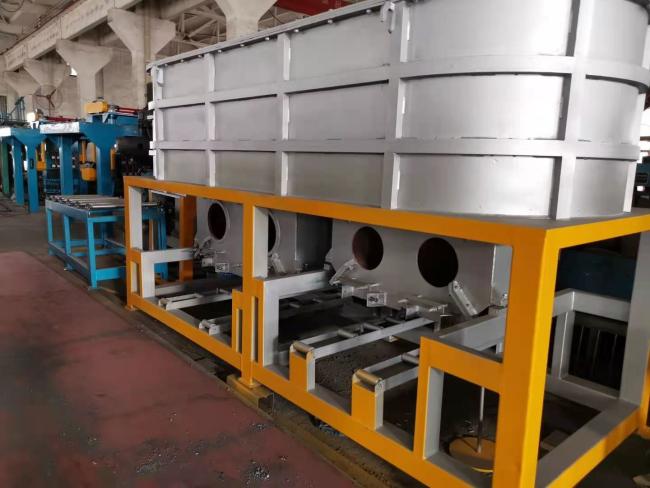

1,Induction Furnace System

2,Induction Furnace Control System

3,Casting Mechanism

4,Servo Control System

5,Position Limiter(tensioner)

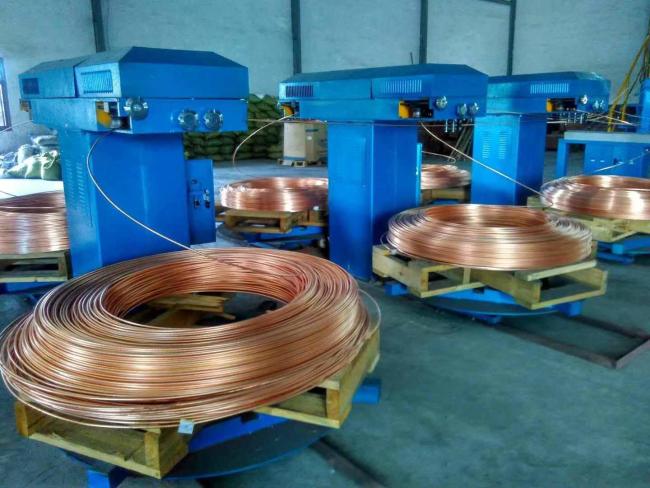

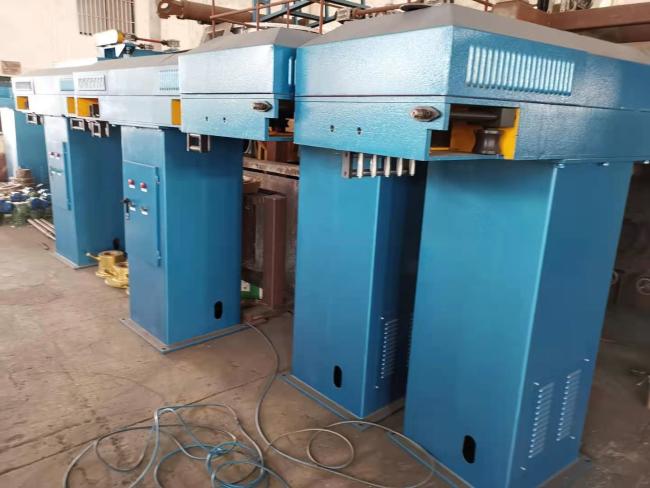

6. Take-up Machine

7,Water Cooling System

8,Temperature Measuring System

9. Material Feeding Unie

Shanghai Swan 8-20mm High Output 8000t Upcasting Machine for Oxygen-Free Copper Wire

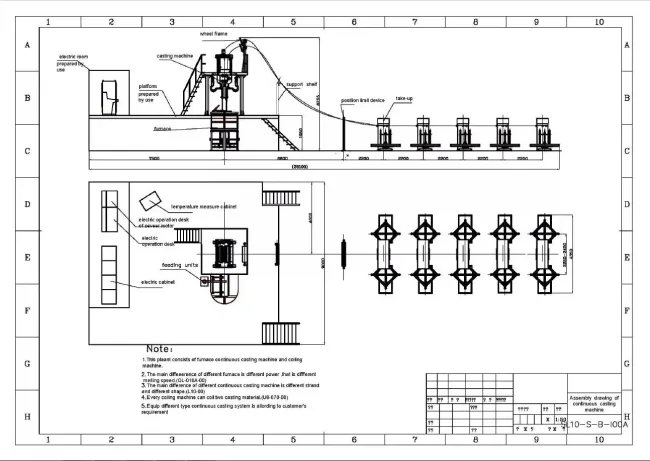

Equipment layout drawing

For customers of newly built factories, we can design equipment layout plans and produce drawings according to the size of the customer's site, better solve the problem of site layout for customers, accelerate project start-up and shorten construction period.

NO	MODEL	CASTING STRANDS	CASTING DIAMETER(mm)	ANNINAL CAPACITY(ton	POWER CONSUMPTION/TON(k Wh/t)
1	YY06-Q2B-S-B-8/20	6	8-20	3000	≤350
2	YY10-QL-S-B-8/20	10	8-20	5000	≤330
3	YY10-QL-S-B-12.5/30	10	12.5-30	6000	≤320
4	YY14-QG-S-B-12.5/30	14	12.5-30	8000	≤320
5	YY16-QWB-S-B-12.5/30	16	12.5-30	10000	≤300
6	YY20-QW2B-S-B-12.5/30	20	12.5-30	12000	≤300
