60mm diameter, 7kpa pressure, 24 Vdc small centrifugal blower Inflatable equipment blower. Suitable for air cushion machines/CPAP machines/fuel cells/medical equipment.
Blower features:
| Part No | WS7040-24-V200 |
| Vlotage | 24VDC |
| At Max airflow | |
| Speed | 37,000rpm |
| Current | 2.7A |
| Air flow | 25.5m3/h(14CFM) |
| Noise | 73dba |
| At Max air pressure | |
| Speed | 45,000rpm |
| Current | 0.8A |
| Air Pressure | 6.5Kpa |
| Noise | 70dba |
| Block | 50dba |
Product Parameters
| Motor type | Three Phase Brushless |
| Bearing type | NMB Ball bearing |
| Insulation Class | Class F |
| Protect Class | IP54 |
| Operating Temperature range | -20℃ ~ +60℃ |
| Life MTTF | 15,000hours |
| Hall Sensor | 120 |
| Speed @Hall sensor frequency | 1HZ=60r/min |
| Driver Type | WS2403DY01V04 |
| Product Weight | 78g |
| 24V version choose 24VDC-4A power supplier | |

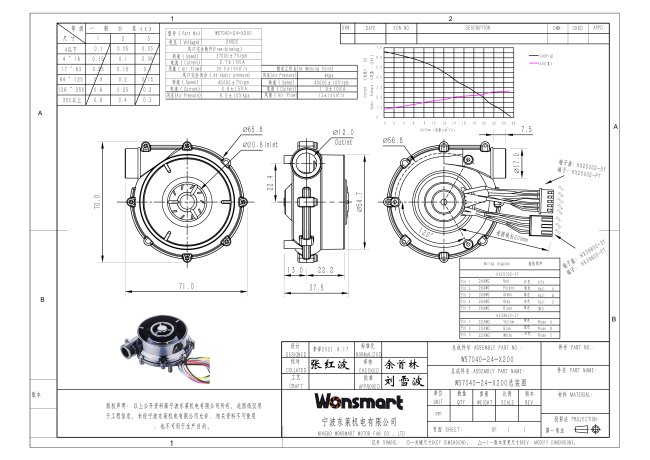

Drawing:
Payment&Delivery
How To Use The Blower Correctly
This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.
Filter onto the inlet to protect the blower from dust and water.
Keep the environmental temperature as low as possible to make the blower lifetime longer.
Matters needing attention
1. Do not use max pressure as working point,this point is not safe since airflow is too small.
2. To add a filter onto the inlet can make the blower run longer time.
3. The right impeller run direction is CCW
