WS9260-24-250-X200
Long Lasting Brushless DC Blower For Clean Environments 15000 Hours Lifespan At 25°C
Price:
$51.7
MOQ:
1pcs
Delivery Time:
7-10 work day
Brand:
Wonsmart
Product Description
WS9260/BRUSHLESS DC BLOWER
1. Three-phase brushless motor for efficient and quiet operation.
2. NMB Ball bearing for smooth and long-lasting performance.
3. Insulation class F ensures safety and durability.
4. Operation temperature range from -20℃ to +60℃ for versatile use.
5. MTTF of 15000 hours guarantees reliability and longevity.
6. Internal driver for easy operation and control.7. Compact size and weight of 85g make it ideal for rework soldering station machines.
8. 24V version requires a 24VDC-8A power supplier for optimal performance.
Main Parameters
| Model | Voltage | Max.air flow | Max.air pressure | Current range | Power range | Speed range | Noise | Outlet | Inlet |
| V | m3/h | Kpa | A | W | rpm | dba | mm | mm | |
|
WS9260-24-250-X200 |
24 | 130 | 7.5 | 8 | 103.2-192 | 25000-29000 | 62-90 | φ30 | φ30 |

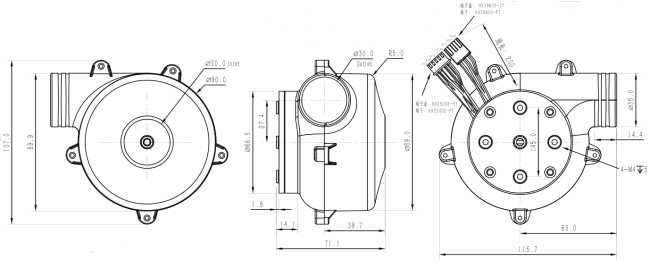

Drawing
Tips:Overall size(L*W*H):115.7mm*107mm*71.1mm

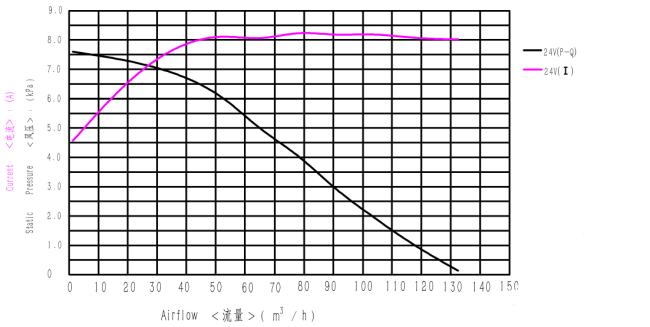

Performance Curve
| @Free-blowering | @At working Point | @At static pressure | |||||||
| Speed | Current | Airflow | Air pressure | Speed | Current | Airflow | Speed | Current | Air pressure |
| 25000rpm | 8A | 130m3/h | 5Kpa | 25000rpm | 8A | 65m3/h | 29000rpm | 4.3A | 7.5kpa |
Bullet Points
Looking for a powerful yet compact blower for your portable tools or equipment? Look no further than our mini brushless DC blower! Featuring NMB ball bearings for extended lifespan, this blower packs a punch with high vacuum output and a large airflow. And with its small size and lightweight design, it's the perfect addition to any portable setup. Plus, its drive circuit board is external, so you can easily adjust the speed with PWM or 0-5V control. Order now and experience the power of our mini brushless DC blower!
Try it out today
