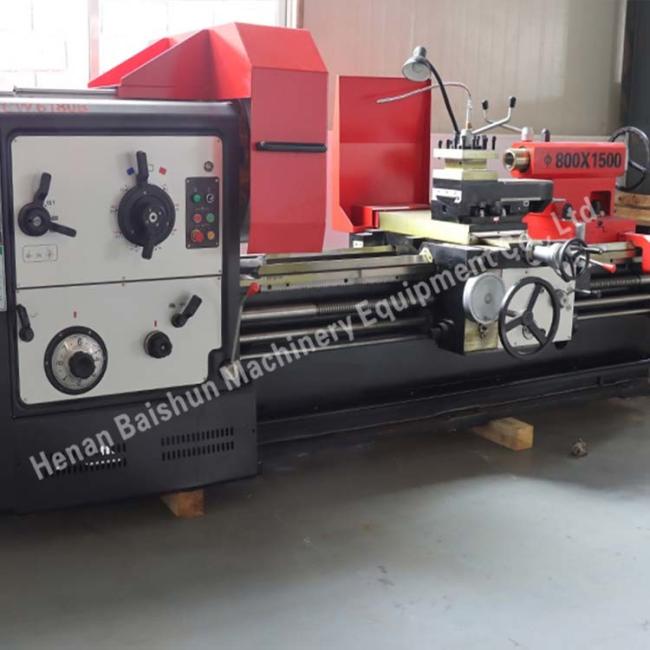

Horizontal Cutting Metal Heavy Duty Lathe Cw6180*1000 Promotional Lathe Machine

Horizontal Cutting Metal Heavy Duty Lathe Cw6180*1000 Promotional Lathe Machine

Product Introduction:

The heavy-duty horizontal lathe machine is designed using internationally advanced methods and manufacturing technology, adhering to the latest national precision standards. It integrates electrical, automatic control, hydraulic control, and modern mechanical designs from multiple disciplines and categories of precision manufacturing technology.

The CW6150, CW6163, CW6180, CW61100, CW61125, and CW61160 heavy-duty lathes are suitable for turning or machining cast iron and steel workpieces as well as medium to large non-ferrous metal parts. They can perform external cylindrical surface turning, internal hole and end face turning, and various internal and external metric, inch, module, and diametrical pitch threads. The top slide can be used independently for turning of short tapers. These lathes boast high power, high rigidity, and a wide range of rotating speeds, making them ideal for high-speed and strong force turning operations.

CW6180Q/CW6280Q Series Lathe Machine( 2tons load capacity):
Swing over bed: 800mm;
Swing over cross slide: 480mm;
Processing length: it's up to customer's requirements;
Bed width: 550mm;
Load capacity: 2 tons;
Spindle bore: 105mm [Optional 130mm];
Main motor power: 11kw.

Key Features:

1. Universal lathe suitable for high-speed steel and carbide cutting tools for different materials.

2. Medium frequency hardened for enhanced hardness and precision.

3. Strong spindle rigidity and supporting capacity for stable machining operations.

4. Large speed range with smooth motion and low temperature rise for efficient processing.

Specification:

Customs' feed back:

We are a direct-sale lathe machine manufacturer, not a trading company, which means we can offer you the best prices.
Welcome get in touch with us:)
