Product Introduction

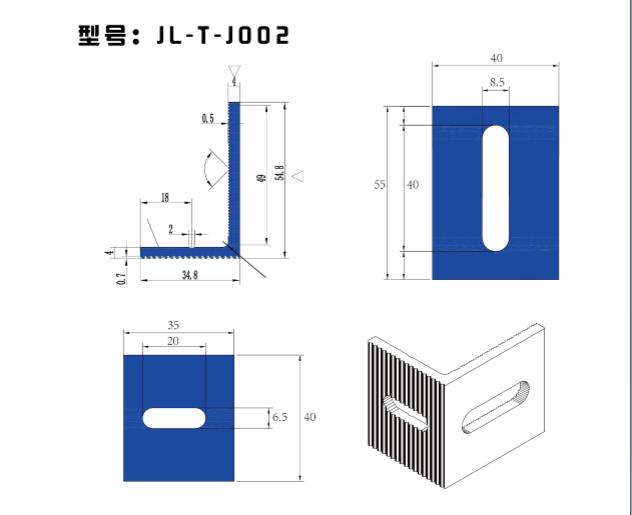

This product is a pendant group for 3004 and J002, which is suitable for grooving and closing of 25mm, 30mm thick and other overlapping edge clay panel. The horizontal width dimensions are currently 3.8cm,4cm,5cm and 8cm. The vertical length dimensions are currently 7cm,7.5cm,8cm,9cm and 9.5cm. The vertical adjustment range is 15mm, and the front and rear adjustment range is 25-35mm.



Features

This product is made of aluminum alloy material, it has the characteristics of light weight, high hardness, and strong corrosion resistance. Compared to traditional metal pendants, aluminum alloy pendants can significantly reduce the overall weight of curtain walls and alleviate the load-bearing burden of buildings, especially suitable for high-rise buildings

Application

This product is mainly used for 30 mm terrocatta panel support system. It is a highly versatile and durable cladding system designed for use in various architectural applications. Manufactured in China, it has received ISO9001 certification for its quality and reliability.

Support and Service

Our product includes comprehensive technical support and services to ensure proper installation and long-term performance. Our expert team assists with design, product selection, and installation details to meet all safety and code requirements.

Contact us for more information about our technical support and services.
