50HZ Semi Automatic Bagging Machine Sealing Hand Throwing ODM

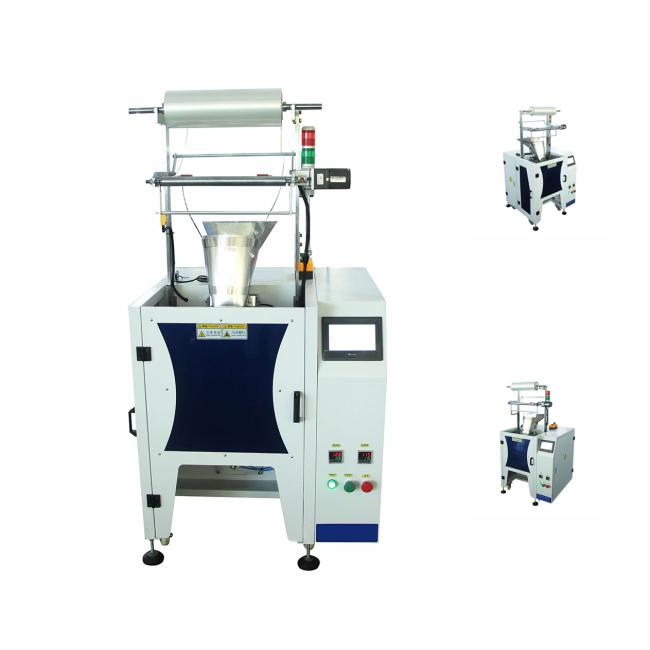

GL-B860X Semi-automatic Small Hand Throwing Packaging Machine for Various Parts
Product overview
• Semi-automatic hand-fed packaging machines are designed to increase packaging efficiency and reduce manual labor. It is suitable for small and medium-sized packaging needs, especially for situations where manual feeding of materials is required but automatic filling and sealing are desired.
• This packaging machine requires the operator to manually place the materials to be packaged into the packaging area. This can be a product, component, food or other item that requires packaging. Operators place materials in appropriate locations as needed for subsequent packaging processes.
• The packaging machine is equipped with an automatic sealing and cutting device, which can automatically seal the packaging material after filling is completed and cut it to form an independent packaging unit. This ensures the seal and integrity of the package and reduces the need for manual handling.
Product specifications
| Equipment model | GL-B860X |
| Counting method | Manual delivery |
| Bag size |
width 40-230 length within 300 (normally 140) |
| Packing speed | 1-60 bags/min |
| Sealing shape | stripe, back sealing/three side sealing (conventional back sealing) |
| Voltage power | 220V/50HZ P≈0.6KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape |
pattern knife tooth shap |
| Dimensions | 900mm*900mm*1800mm(L*W*H) |
| Weight | about 500KG |
GL-B860X Semi-automatic Small Hand Throwing Packaging Machine for Various Parts
Technical characteristics
1) automatic filling bag according to the manual placement., automatic counting, automatic filling, automatic packing, sealing function, output count.
2) Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.
3) The length of packaging bag is adjustable, the total number of packaging is adjustable, the set number of automatic alarm.
4) After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.
Operating procedures
GL-B860X automatic filling bag according to the manual placement. And the equipment can automaticlly sealing and cutting, add hoist.
Maunal placement product to package into former when the green light up.
1) The products are filled into bag, and after the sealing and cutting are completed, the finished bag is pushed out by pushing the board.
2) The hoist conveys the packaged finished products.
3) The bag of the final product was beautiful and uniform, and the number was accurate.
GL-B860X Semi-automatic Small Hand Throwing Packaging Machine for Various Parts
Why choose us
1) 15+ years of production experience,reliable supplier and professional team
2) 1000+ representative case,various packaging experience
3) 1 to 1 ,after-sale service ,customer satisfaction
4) 60+ certificate patents,mature technology
our service
We have perfect service system
Before sales Services
• many professional packing videos,give you direct feeling about our machines.
• free packing solution from our R&D department.
In sales Service
• We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After sales Service
• Manuals/Video of machine installation, adjusting,setting,maintenance are available for you .
• The machine will have one yeah warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you .
• If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available
