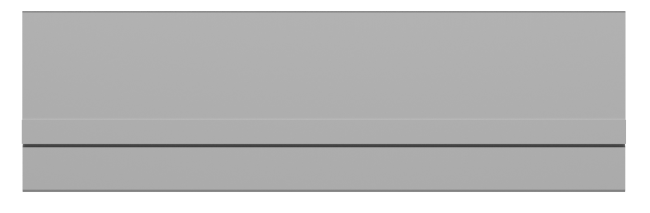

LYNCCN BCY55.88 V16 Press Brake Tooling Single V Die

Price Negotiable

Price: Negotiation

MOQ: 500mm*3pcs

Delivery Time: Negotiation

Brand: LYNCCN

Product Description

Product Description:

A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.

This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.

Technical Parameters:

Product Type	Press Brake Single V Die
V-opening	V16
Angle	88°
Width	30mm
Height	75mm
Material	42CrMo
Length	550mm/500mm
Hardness	HRC53±2
Heat Treatment	Induction Hardening
Max. Load	100T/M
Packing	Wooden Box

Standard Segmentation:

500mm

1000mm

1100mm Segmentation

Applications:

Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
