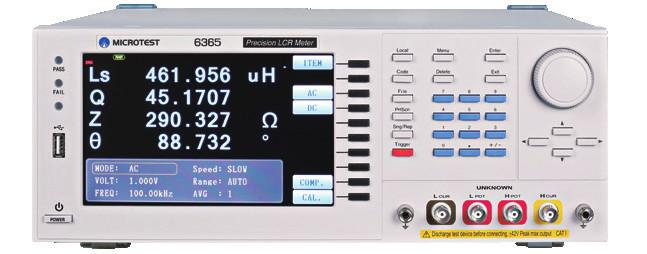

Aluminum Electrolytic Capacitors Precision LCR Tester

Introduction:

 Multi-step measurement with up to 8 steps.
 Measurement in absolute (ΔAbs) or percentage difference (Δ%) from nominal value.
 High-precision measuring fixture with four-wire connection and grounding.
 Fixture zeroing (open/short circuit).
 Bar display for easy determination of variable parts.
 7” LCD color display with 800x480 screen resolution.
 Intuitive user interface with complete measurement functions.

Test frequency:

10Hz~20kHz (6365) ／ 10Hz~100kHz (6364)
10Hz~200kHz (6365) ／ 0.1Hz~200kHz (6365A)
10Hz~500kHz (6366) ／ 0.1Hz~500kHz (6366A)
10Hz~1MHz (6367) ／ 0.1Hz~1MHz (6367A)
 Measurement Voltage: 10mV~2V.
 Basic Measurement Accuracy: 0.1%.

Measurement Category


 Series Inductance (Ls) Parallel Inductance (Lp)
 Series capacitance (Cs) and parallel capacitance (Cp)
 Series Resistance (Rs) Parallel Resistance (Rp)
 Reactance(X) Nano(B)(=1/X)
 Impedance(Z) Conductance(Y)(=1/Z)
 Loss Factor(D) Quality Factor(Q)(=1/D)
 Phase angle (θ)
 Conductance (G)
 DC Resistance (Rdc)
