1500VDC UL Approved Photovoltaic Junction Box With Tin Plated Copper Contact
1500VDC UL Approved Photovoltaic Junction Box with Tin plated Copper Contact
Product Description:

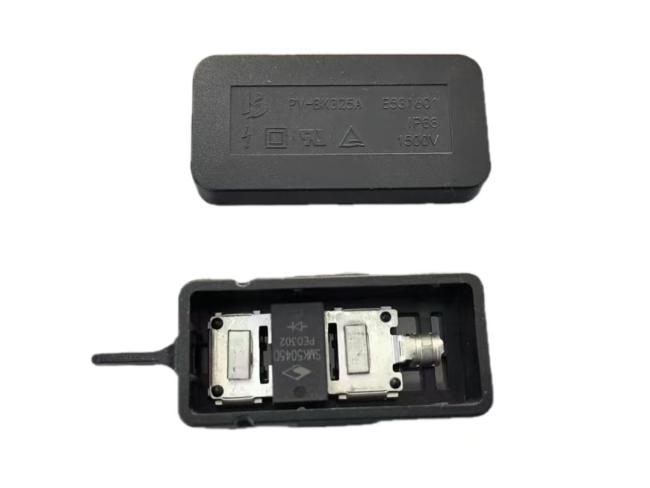

BOKANG PV-BK325A Photovoltaic Junction Box is a type of connector used in new energy applications, particularly in solar energy systems. It is designed to provide a secure and reliable connection between solar panels and other components in the system.
The product is manufactured in China and has been certified by TUV and UL, ensuring that it meets international standards for quality and safety. The minimum order quantity for this product is 2000 sets, and the price is negotiable based on the quantity ordered. The packaging details include a carton size of 600*400*200mm, and the delivery time will be as required. Payment terms are also negotiable, and the supply ability is as required.
The BOKANG PV-BK325A Photovoltaic Junction Box features a contact material of copper with tin-plated, which provides excellent conductivity and corrosion resistance. It has an operating temperature range of -40℃~+85℃ (TUV) and -40℃~+90℃ (UL), ensuring that it can perform in a wide range of environmental conditions. It has a safety class of Class II and a rated voltage of 1500 VDC which makes it safe to use in solar energy systems.
The potting sealant volume of the BOKANG PV-BK325A Photovoltaic Junction Box is approximately 21ml, which provides a strong seal and prevents moisture and dust from entering the box. The connector type makes it easy to connect to other components in the system, reducing installation time and improving overall efficiency.
This product is suitable for use in a variety of new energy applications, such as solar power plants, solar street lights, and other solar energy systems. It provides a reliable and safe connection between solar panels and other components in the system, ensuring that the system operates efficiently and effectively.
Features:
- Product Name: Photovoltaic Junction Box
- Adaptable Connector: BK1500/EVO2/MC4
- Operating Temperature: -40℃~+85℃ (TUV); -40℃~+90℃ (UL)
- Flame Rating: V-0(TUV); 5VA (UL)
- Wire Size: 4mm² (TUV); 12AWG (UL)
- Certifications: TUV, UL
Technical Parameters:
| Technical Parameters | Values |
|---|---|
| Safety Protection | Class II |
| Rated Voltage | 1500 VDC |
| Waterproof Structure | Potting Sealant |
| Operating Temperature | -40℃~+85℃ (TUV); -40℃~+90℃ (UL) |
| Flame Rating | V-0(TUV); 5VA (UL) |
| Adaptable Connector | BK1500/EVO2/MC4 |
| Potting Sealant Volume | Approx. 21ml |
| Certifications | TUV, UL |
| Wire Size | 4mm² (TUV); 12AWG (UL) |
| IP Rating | IP65/IP68 |
