Mining Equipment Maintenance Parts F4l912 Diesel Piston Engine Repair Wortshop Supplier
Product Description:
mining equipment maintenance F4L912 diesel piston engine repair wortshop supplier

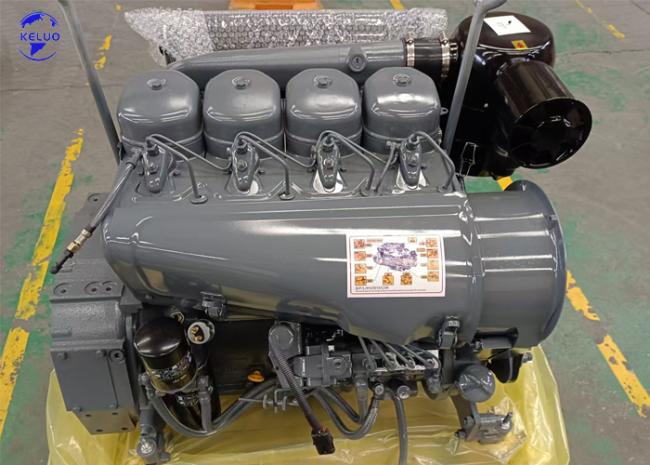

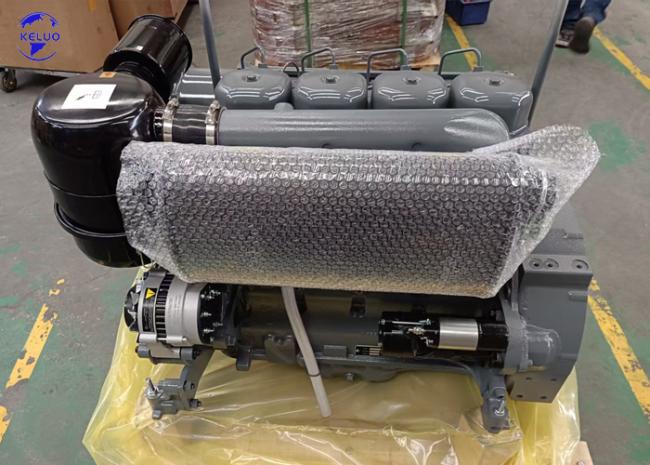

The Deutz F4L912 is a 4-cylinder, naturally aspirated, air-cooled diesel engine widely used in construction machinery, agricultural equipment, generator sets, air compressors, water pumps, hydraulic power units, forklifts, and marine auxiliary power systems. Its compact design, excellent reliability, low fuel consumption, and easy maintenance make it ideal for demanding industrial and off-highway applications.
Technical Parameters:
| Item | Specification |
|---|---|
| Engine Model | Deutz F4L912 |
| Engine Type | 4-Stroke, In-line 4-Cylinder Diesel Engine |
| Aspiration | Naturally Aspirated |
| Cooling System | Air-cooled |
| Combustion System | Direct Injection |
| Number of Cylinders | 4 |
| Bore × Stroke | 100 × 120 mm |
| Displacement | 3.77 L |
| Compression Ratio | 17:1 (some OEM variants: 19:1) |
| Rated Power | 32–59 kW (43–80 HP), depending on application and speed |
| Rated Speed | 1500–2800 rpm |
| Maximum Torque | Up to 238–247 Nm @ 1450–1600 rpm |
| Specific Fuel Consumption | 215–221 g/kWh |
| Rotation Direction | Counterclockwise (viewed from flywheel end) |
| Starting System | 12V or 24V Electric Starter |
| Fuel Injection Pump | Mechanical Direct Injection Pump |
| Lubrication System | Pressure Lubrication |
| Dry Weight | Approx. 300–320 kg |
| Overall Dimensions (L × W × H) | Approx. 860 × 673 × 815 mm |
| Emission Standard | Non-road Mechanical Engine (Euro II or non-certified, depending on version) |
| Typical Applications | Construction Machinery, Agricultural Equipment, Generator Sets, Air Compressors, Water Pumps, Forklifts, Marine Auxiliary Power |
Applications:
1. Construction Machinery
Mini Excavator
Wheel Loader
Skid Steer Loader
2. Road Roller
Compactor (Plate Compactor/Rammer)
Compact Bulldozer
3. Agricultural Machinery
Tractor
Combine Harvester
Baler
Irrigation Pump
Agricultural Power Generation Equipment
4. Industrial Equipment
Diesel Generator Set
Air Compressor
Hydraulic Power Unit
Industrial Water Pump
Fire Pump
Welding Machine Power Source
5. Material Handling Equipment
Forklift
Port Machinery
Industrial Tow Tractor
6. Marine Auxiliary Power
Marine Generator Set
Marine Hydraulic Power Unit
Workboat Auxiliary Engine
Support and Services:
Deutz Engine Product Technical Support and Services
Our technical support team is dedicated to providing comprehensive assistance for Deutz engines. Whether you require troubleshooting, maintenance guidance, or detailed technical information, our experts are here to help ensure your engine operates at peak performance.
We offer a range of services including diagnostic support, repair advice, and access to engine parts. Our service professionals are trained to handle all Deutz engine models, delivering prompt and reliable solutions tailored to your specific needs.
For detailed manuals, service bulletins, and software updates, please refer to the official Deutz resources. Regular maintenance and timely repairs are crucial for maximizing the lifespan and efficiency of your engine.
Trust Deutz technical support to keep your engine running smoothly and efficiently, minimizing downtime and optimizing productivity.
Packing and Shipping:
Each Deutz engine is carefully packaged to ensure maximum protection during transit. The engine is securely mounted on a sturdy wooden pallet, wrapped with industrial-grade plastic film to prevent dust and moisture damage. Additional cushioning materials are used to safeguard sensitive components from shocks and vibrations.
For shipping, the packaged engine is handled with care and loaded into containers or trucks that comply with transportation safety standards. All shipments include detailed documentation, including the product manual, warranty information, and compliance certificates, to facilitate smooth customs clearance and delivery.
We offer various shipping options to meet customer needs, including express air freight, sea freight, and land transport. Our logistics partners ensure timely and reliable delivery to your specified location worldwide.
