1.Technical Specifications

Stainless-steel Panel Mounted Industrial TouchPad.
Compact design and highly reliable.
Provide waterproof, dustproof & violence resistened features ( IP65 / IK07 ).
Smooth Capacitive touch control, with 2 keys.
Long-life keys with over 2mil key life cycle.
The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

2.Mechanical Features


Panel board and keys material: SUS304 Stainless-steel
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 110*110*19MM, front panel size: 79.8*99.8MM
Weight: 200g

3.Environmental adaptability

Op. Temp: -40℃～+60℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV

4.Keyboard Language

Defult keyboard language is US.
Optional for customized different languages, such

as Spanish, French, German, Portuguese, Russian, Arabic etc.

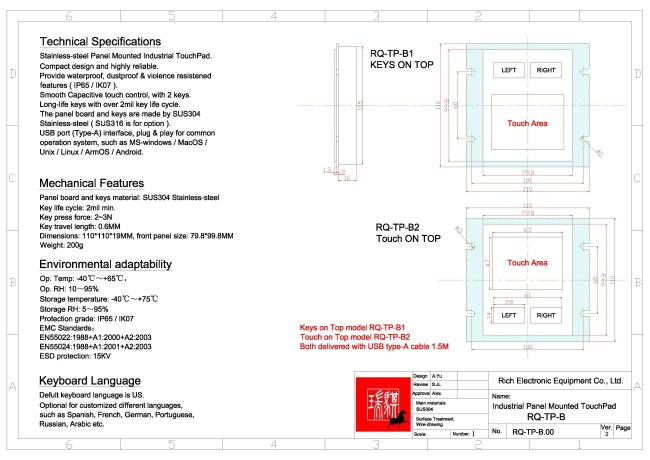

5.Installation Drawing

6. APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

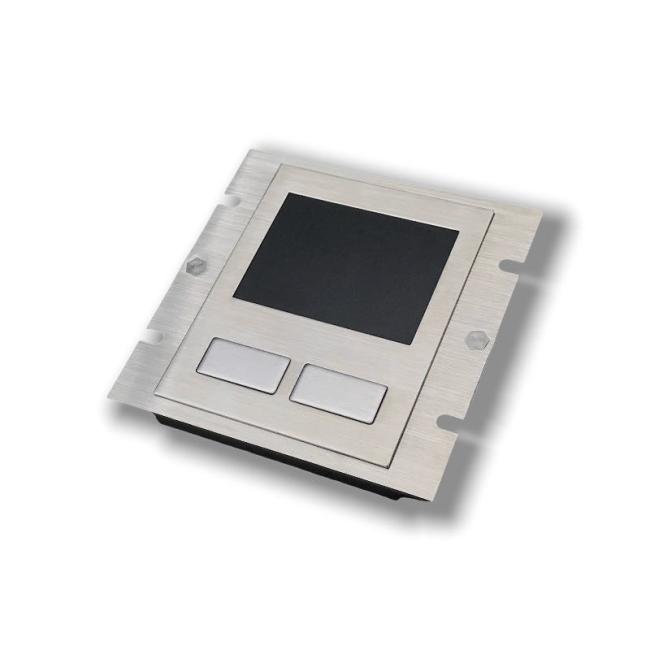

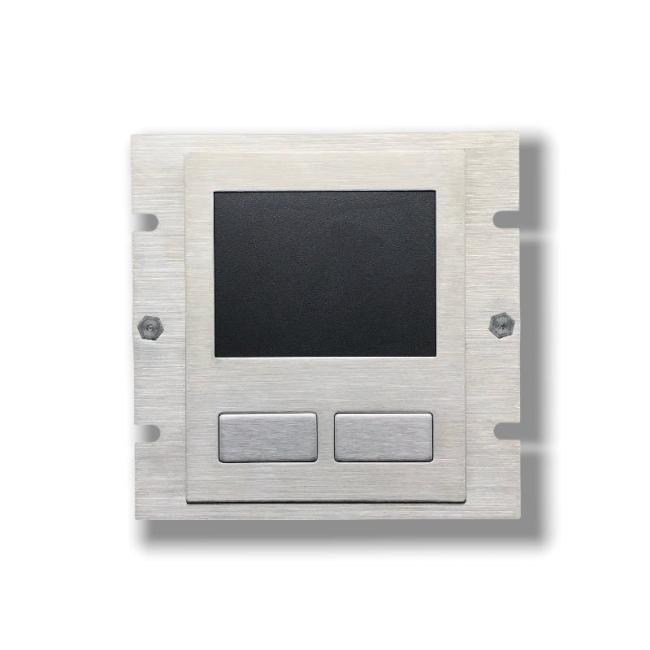

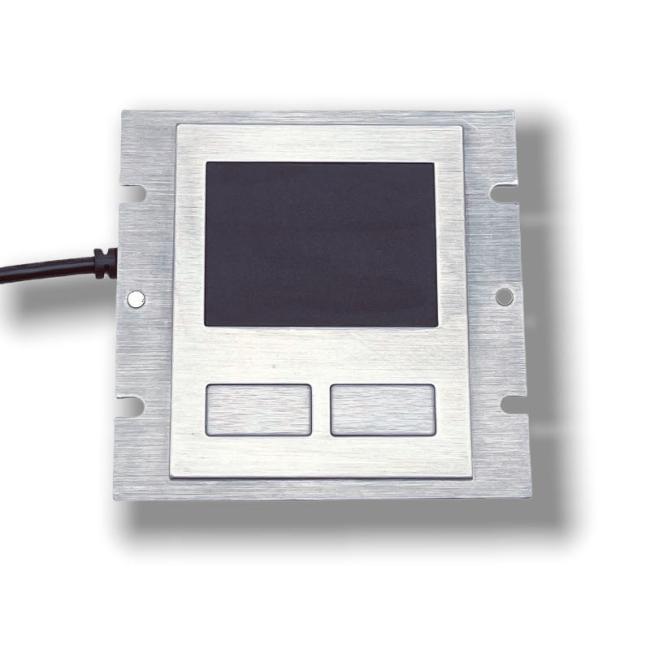

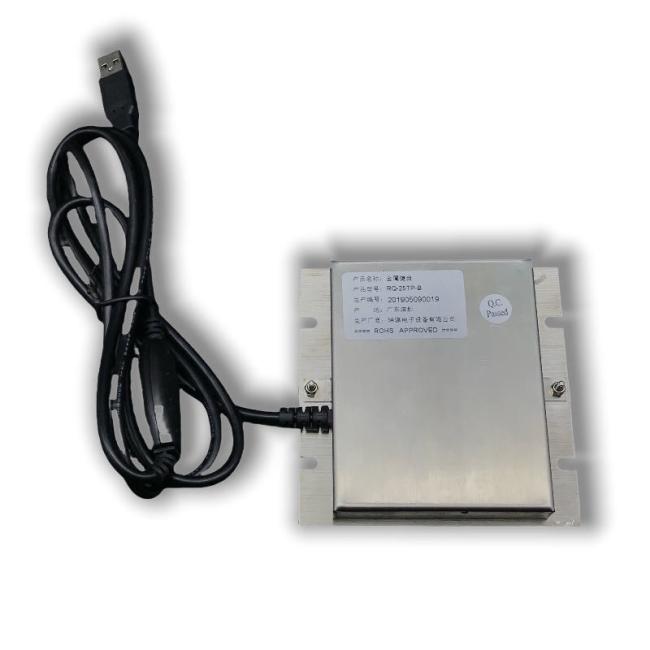

7. more pictures:
