3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing
3-in-1 Hot Sealer for Top/Side Edge Sealing & Vacuum Sealing and Vacuum Standing for Pouch Cell R&D
Model: MR-YF200-JZ
MR-YF200-JZ is a 3-in-1 compact hot sealer.
· the preliminary sealing top and side of the pouch cell before electrolyte injection (MR-SFZ200)
· the vacuum sealing for the pouch case after injection of electrolyte in the glove box (MR-YF200)
· the vacuum standing for the electrolyte diffusion and degassing (MR-JZ300) (Vacuum time adjustable)
It is designed for Li-S pouch cell preparation in glove-box for space-saving.
Specifications
| Model | Top/Side & Vacuum Standing & Vacuum Sealing MR-YF200-JZ |
| Power Supply | 110-240 V, Single Phase 50/60Hz |
| Max. Power | 1KW |
| Compress Air | 0.5-0.8Mpa |
| Chamber Body | 12mm thick Aluminum case with observation window |
| Vacuum Level | Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently Vacuum mode (once or twice) can be selected Easy program setting for specific vacuum condition Vacuum degree can up to -90Kpa～0, with good sealing, can guarantee 1 minute air leakage is not more than 0.01 MPa |
| Vacuum Condition Hold Time | 0 - 9999 sec, adjustable |
| Sealing Advantage |
1. Sealing Head adopts copper material, good heat transfer effect. 2. With adjust plate, Can apply to different specifications battery, and the adjusting easily |
| Sealing Head TEM | RT-250℃, adjustable |
| TEM Accuracy | ±2℃ |
| Heat Sealing Pressure | 0～7Kg/cm2, adjustable |
| Hot Sealing Time | 0～99s, adjustable |
| Sealing Width | 5mm, customized acceptable |
| Sealing Head Length | 200mm |
|
Suitable Battery Size (Inner size) |
200*190*12mm |
| Dimensions |
Work box: 570*420*750mm Inner Chamber Size:350*285*165mm |
| Net Weight | About 76kg |

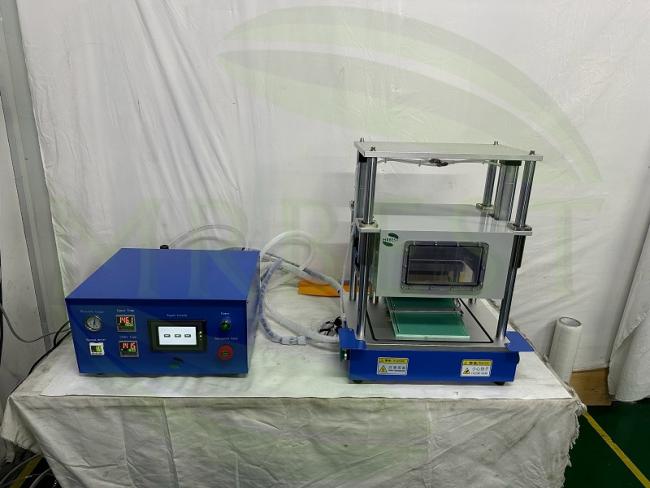

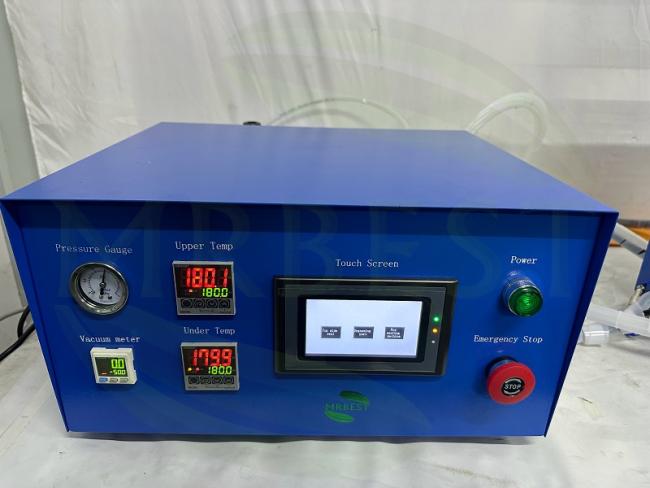

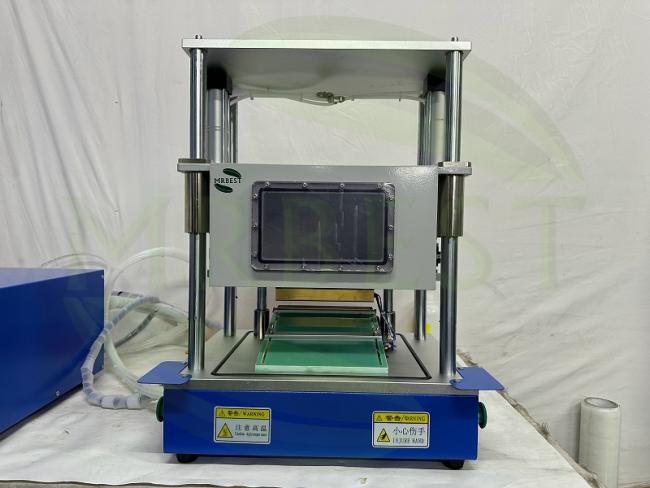

Picture for Reference
