Pouch Cell Battery Electrolyte Diffusion & Degassing Chamber for Li-Ion Battery Vacuum Standing

Model: MR-JZ300

The electrolyte diffusion & degassing chamber standing box is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition.

Features

1. The vacuum remains stable. When holding, the vacuum is not much lower.

2. The product has a multi-stage cycle operation function. Helps the electrolyte to fuse more fully.

3. Through the perspective window, you can observe the changes in the cavity while working.

4. The upper cavity is driven by an air cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements.

5. It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

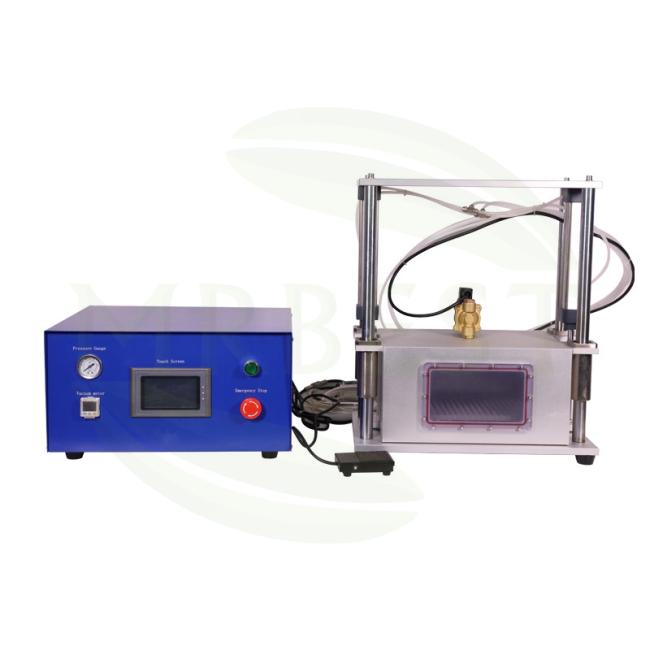

6. The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.

7. Easy operation, beautiful appearance, small size and light weight.

Specifications

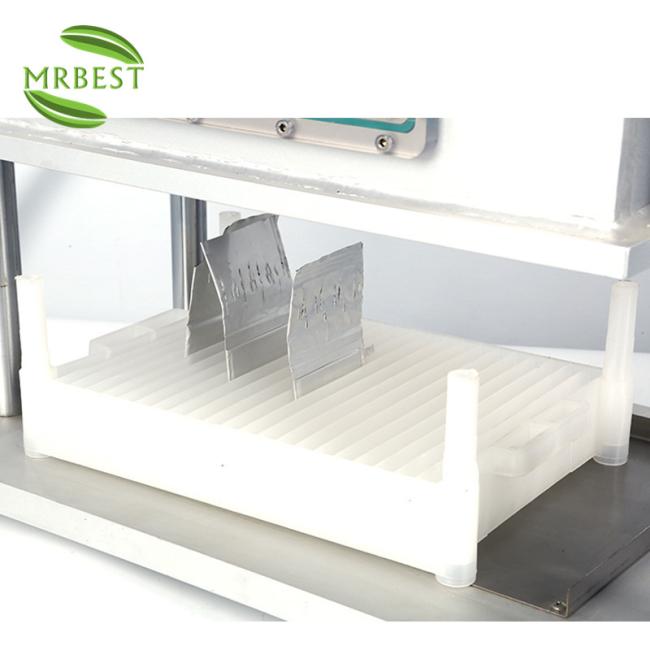

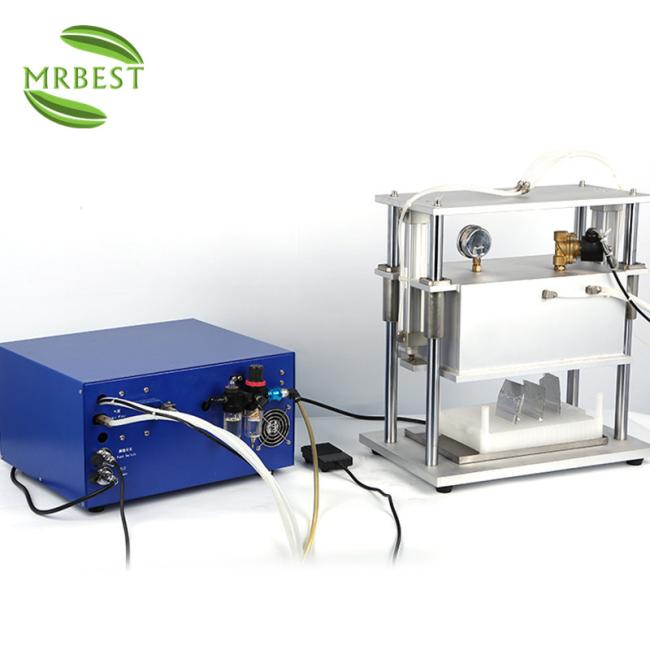

Picture for Reference

MRBEST Factory Show
