100W Pouch Cell Case / Cup Forming Machine For Aluminum Laminated Films
Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films with Optional Die
Model: MR-SCK200
MR-SCK200 is a pouch cell forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a smaller size, which is more suitable for lab research.
Features
● Punching depth can be adjusted.
● Different size of punching die can be optional and easy to replace.
● The punched case without crow's feet and corner collapse.
● The punching die can only go down only when pressing the 2 buttons at the same time to avoid hurting hands.
● IR sensor is included for safty protection.
● Protection cover is included.
● It's designed with counter for calculating the punching numbers.
Specifications
| Model | Pouch Cell Case Forming Machine MR-SCK200 |
| Source voltage | AC 220V/110V, 50/60HZ |
| Power | 100W |
| Warranty | One year limited warranty with lifetime support |
| Advantages |
1. Structure of guide pin, slide up and down smoothly with high precision 2. Change mould, adjust tensile depth simply, quickly 3. Use screen and casing protection, guarantee safety 4. High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating |
|
Suitable aluminum film thickness |
0.1-0.2mm |
| Suitable mold size | 180*150mm(L*W), customized, with punching depth ≤6mm |
| Max. Cup Depth | Single pit punching depth ≤6mm |
| Output | 200-400EA/H |
| Output pressure | 3T |
| Air source | 0.5-0.7MPa |
| Mold materials | SS136 Die steel |
|
Dimension (L*W*H) |
460*320*925mm |
| Weight | About 130kg |

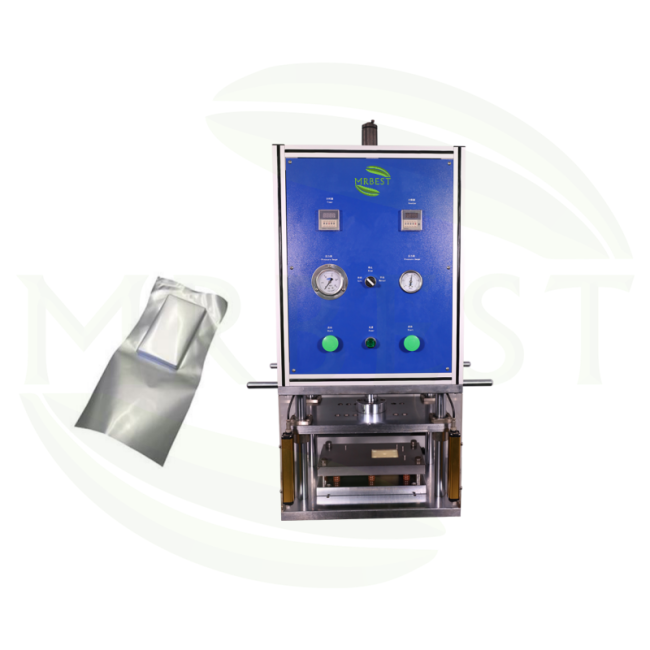

Picture for Reference

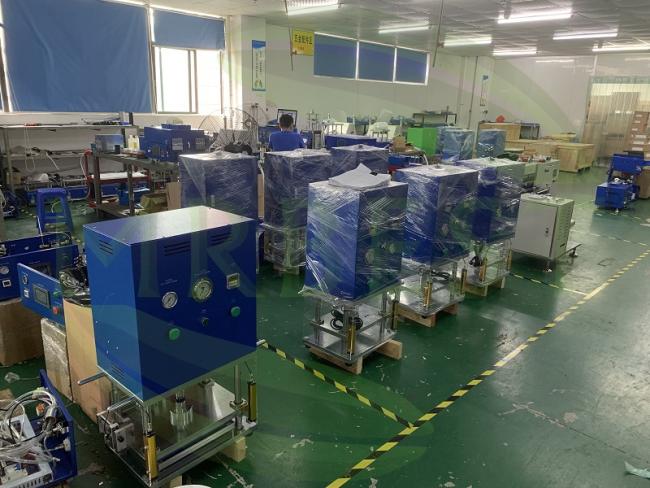

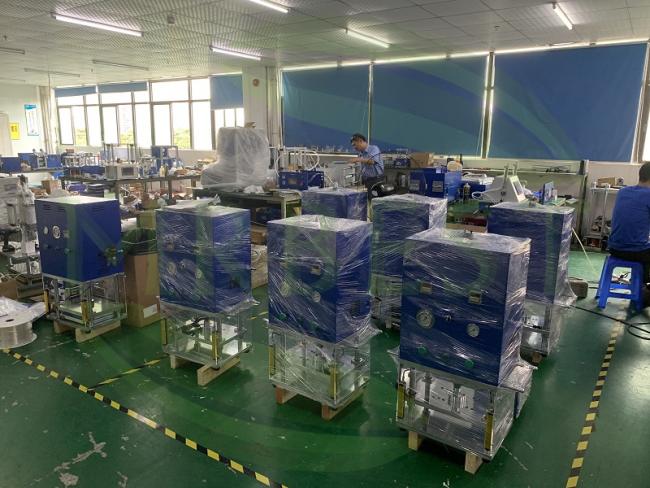

MRBEST Factory Show
Shenzhen Meirui Zhida Technology Co., Ltd
Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
