Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell

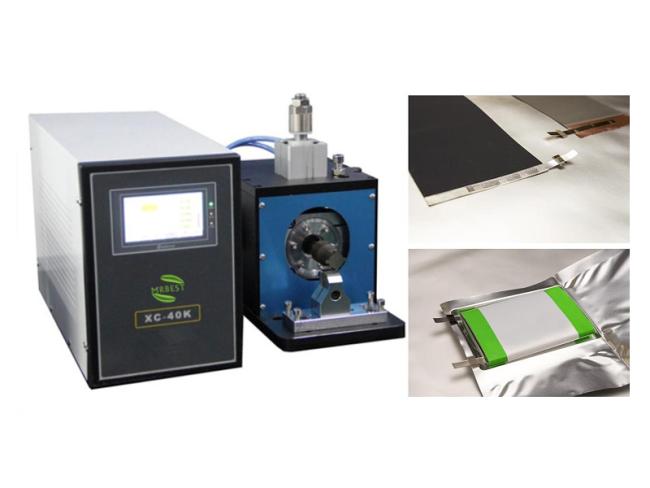

Ultrasonic Metal Spot Welding Machine for Pouch Cell
Model: MR-XC-40K
MR-XC-40K is a CE Certified ultrasonic metal welder, It is designed for welding stacked electrode sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells in R&D laboratories.
The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab. If with bigger battery with layer up to 50 layers, can choose the 3000W model, and If need to weld up to 60 layers, please choose 4500W model.
Features
Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).
Specifications:
| Model | Ultrasonic Spot Welding Machine MR-XC-40K |
| Input Voltage | AC 110V or 220V +/-10%, 50/60Hz |
| Max. Power Consumption | 2200W→can be customized |
| Welding Area | 3mm(L) x 3mm(W)→ can be customized |
| Welding Head | The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 40 layers |
| Ultrasonic Frequency | 40K Hz→ can be customized |
| Product Dimensions |
1. Controller: 360mm(L) x 480mm(W) x 200mm(H) |
| Net Weight | 70kg |
| Compliance | CE Certificate |
| Warranty | One Year limited warranty with lifetime support |
| Application Notes |
Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes. |

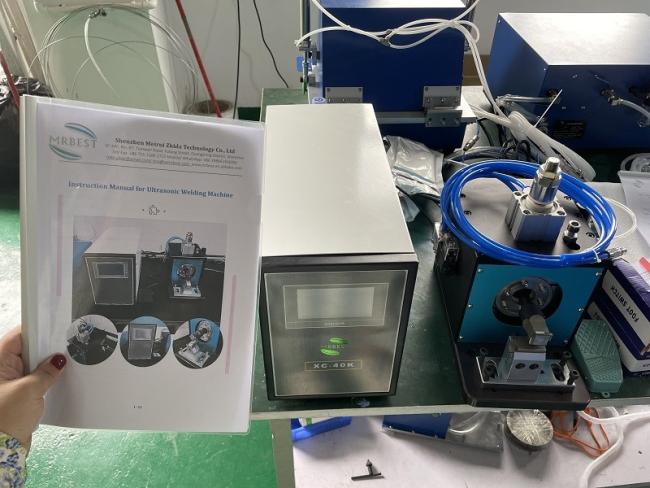

Picture for Reference

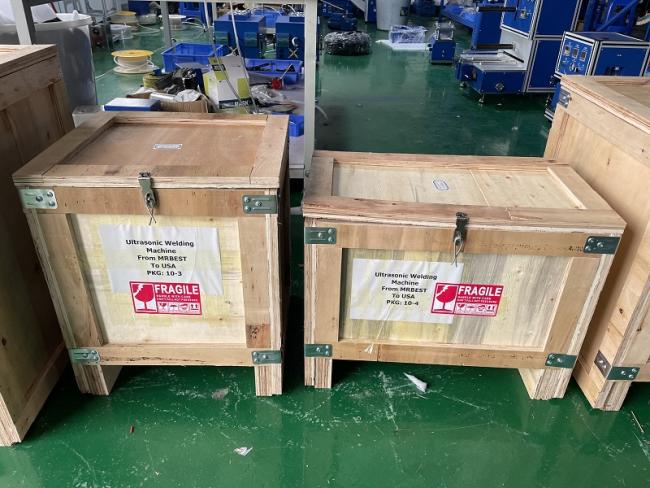

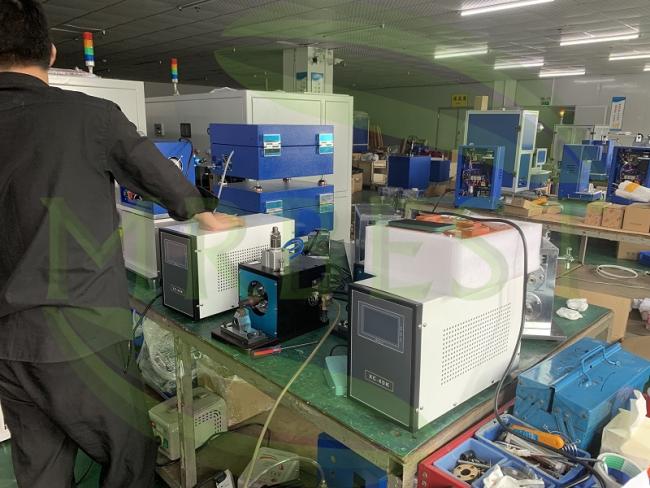

MRBEST Factory Show
Shenzhen Meirui Zhida Technology Co., Ltd
Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
