Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight

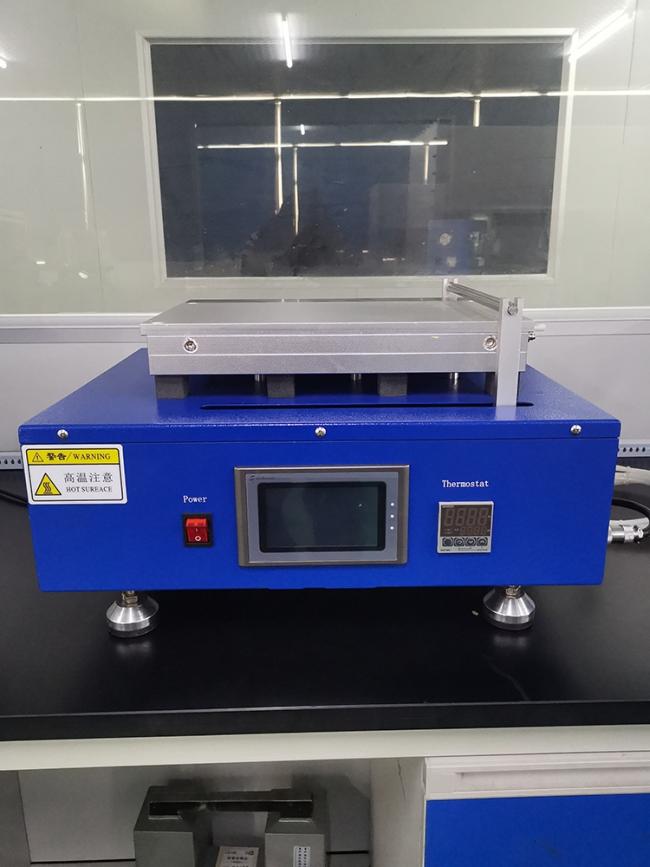

Laboratory Doctor Blade Coater with Bottom Heating
Model: MR-DTM260
1. The MR-DTM260 Laboratory Doctor Blade Coater with Bottom Heating is used for varies kinds of materials coating.
2. It is supplied with vacuum pump and heating system, having an precision heating temperature upto 200℃.
3. The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
4. One oil-less vacuum pump is included
5. New designed Touch Screen control make the operating more easy and simple
Specifications
| Machine model |
Laboratory Doctor Blade Coater with Bottom Heating MR-DTM260 |
| Source voltage | AC110V-240V, 50/60HZ |
| Power | 650W |
| Coating speed | 0-100mm/s, Step-less transmission Accuracy: 10mm/sec |
| Advantages | Supply with dry function, vacuum pump |
| Stroke length | 10 - 250 mm adjustable by using Adjustable Position Switch |
| Platform |
Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) * 200mm(W)*30mm(T) |
| Slicker width | 0-100mm, Ajustable Width Optional |
|
Slicker adjustable range |
0.01-3.5mm |
| Heating dry system | RT-200°C, Digital temperature controller |
|
Temperature control accuracy |
±1°C |
| Dimension | 500*350*320mm |
| Weight | About 40kg |
| Package size | 790*540*600mm |
| Package weight | 65kg |
| Warranty | One Year limited warranty with lifetime support |
| Remark |
1. One oil-less vacuum pump included 2. Heating system : Bottom Base Heating Built in digital temperature controller with accuracy of +/-1°C. Max. Heating Rate:10°C/min Max. Heating Temp.:200°C 3. A 100mm width micrometer adjustable film applicator Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
