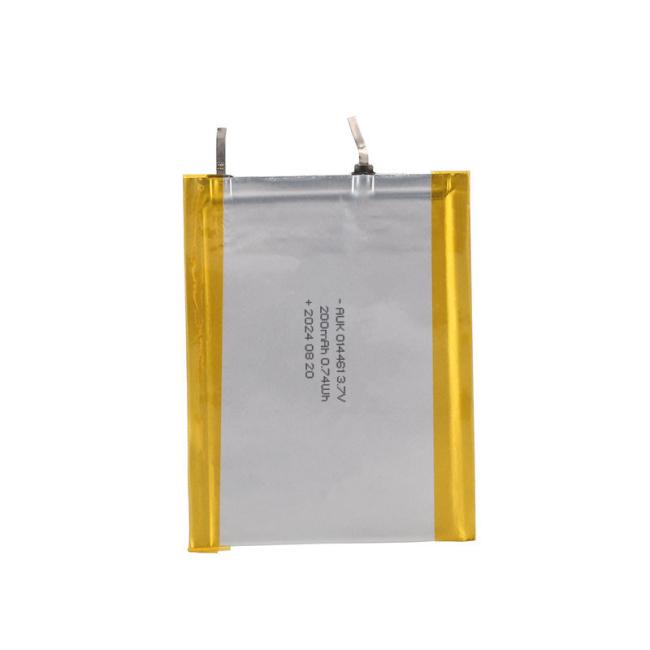

3.7V Rechargeable 25mah 80mah 200mah 1mm Thickness Small Curved Slim Mini Ultra Thin Lipo Polymery Battery
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
5-8 Work Days
Brand:
AUK
Product Description
3.7V Rechargeable 25mah 80mah 200mah 1mm Thickness Small Curved Slim Mini Ultra Thin Lipo Polymery Battery
Battery Specification
|
1. Mechanical Characteristics
|
|||
|
Cell
|
014461
|
PCM
|
No
|
|
NTC
|
No
|
Weight
|
appr. 4 g
|
|
Configuration
|
1S1P
|
Demension
|
1*44*61mm(MAX)
|
|
2. Electrical Specification
|
|||
|
Capacity
|
200mAh
|
Nominal Voltage
|
3.7V
|
|
Energy
|
0.74Wh
|
Internal Impedance
|
less than 300mΩ
|
|
Max. Charge Voltage
|
4.2V
|
Discharge Cut Off
|
2.75V
|
|
Max. Charge Current
|
200mAh
|
Max. Discharge Current
|
200mAh
|
|
Standard Charge Current
|
40mA
|
Standard Discharge Current
|
40mA
|
|
Charge Temp. Range
|
0℃ to 45℃
|
Discharge Temp. Range
|
-20℃ to 60℃
|
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life
|
100 cycles ≥92%
|
|
3 months at -20℃ to +45℃
|
300 cycles ≥88%
|
||
|
1 month at -20℃ to +60℃
|
500 cycles ≥80%
|
||
|
3. Cell protection
|
|||
|
Overcharge Detection
|
-
|
Over discharge Detection
|
-
|
|
Overcurrent Detection
|
-
|
Short protection
|
-
|
For more information, welcome click "contact us" now!
② We support the design of lithium battery products that meet your product requirements.
① The ultra-thin lithium manganese battery with thickness range 0.3~1.5mm and length and
width of 8~80mm can be customized,rechargeable ultra thin lipo is availabe as well.
③ If you need to design the shape and casing of the product, we support a quick drawing
design to make the mold.
④ According to customer's request to custom processing!!!
Other Ultra thin lipo battery as below:
| No | Model | capacity(mAh) | Voltage(V) | Thickness(mm) | Width(mm) | Length(mm) |
| 1 | AUK041850 | 12 | 3.7 | 0.47 | 18.5 | 50.5 |
| 2 | AUK042126 | 8 | 3.7 | 0.50 | 21.8 | 26.1 |
| 3 | AUK042255 | 20 | 3.7 | 0.47 | 22.5 | 55.5 |
| 4 | AUK042323 | 8 | 3.7 | 0.47 | 0.5 | 23.5 |
| 5 | AUK043030 | 15 | 3.7 | 0.47 | 30.5 | 30.5 |
| 6 | AUK043228 | 15 | 3.7 | 0.47 | 32.5 | 28.5 |
| 7 | AUK043251 | 25 | 3.7 | 0.47 | 32.5 | 51.5 |
| 8 | AUK043526 | 12 | 3.7 | 0.47 | 35.0 | 26.5 |
| 9 | AUK072247 | 30 | 3.7 | 0.70 | 22.8 | 47.8 |
| 10 | AUK072836 | 30 | 3.7 | 0.70 | 28.0 | 36.0 |
| 11 | AUK082025 | 14 | 3.7 | 0.80 | 20.5 | 25.5 |
| 12 | AUK083960 | 100 | 3.7 | 1.00 | 39.5 | 60.5 |
| 13 | AUK085045 | 100 | 3.7 | 0.80 | 50.0 | 45.5 |
| 14 | AUK10180270 | 3,000 | 3.7 | 1.00 | 180.0 | 270.0 |
| 15 | AUK20180270 | 6,000 | 3.7 | 1.80 | 180.0 | 270.0 |
| 16 | AUK2029110 | 400 | 3.7 | 2.00 | 29.5 | 110.0 |
