Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
5-8 Work Days
Brand:
AUK
Product Description
Super Thin Li-Ion Flexible Battery 014461 014648 3.7 V 180mAh 200mAh 170mAh Ultra Thin 3.7v Polymer Battery
Battery Specification
|
1. Mechanical Characteristics
|
|||
|
Cell
|
014648
|
PCM
|
No
|
|
NTC
|
No
|
Weight
|
appr. 3.8 g
|
|
Configuration
|
1S1P
|

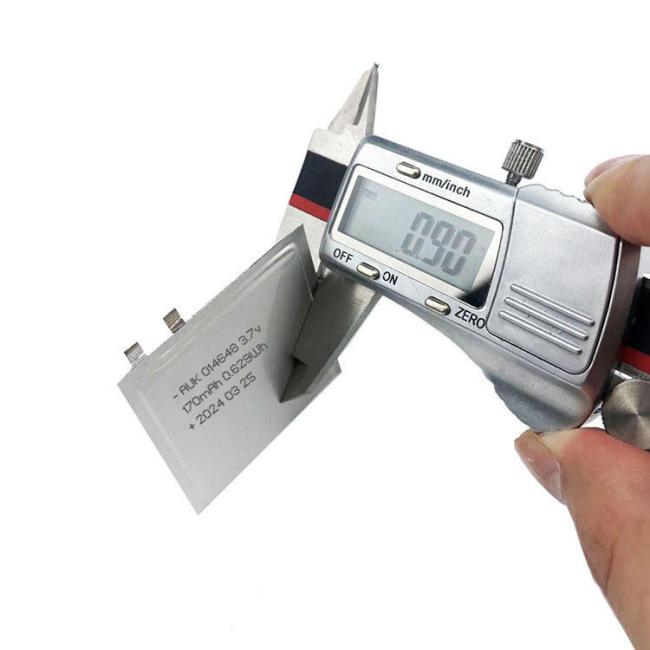

Demension
|
0.9*46*48mm(MAX)
|
|
2. Electrical Specification
|
|||
|
Capacity
|
170mAh
|
Nominal Voltage
|
3.7V
|
|
Energy
|
0.629Wh
|
Internal Impedance
|
less than 300mΩ
|
|
Max. Charge Voltage
|
4.2V
|
Discharge Cut Off
|
2.75V
|
|
Max. Charge Current
|
170mAh
|
Max. Discharge Current
|
170mAh
|
|
Standard Charge Current
|
34mA
|
Standard Discharge Current
|
34mA
|
|
Charge Temp. Range
|
0℃ to 45℃
|
Discharge Temp. Range
|
-20℃ to 60℃
|
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life
|
100 cycles ≥92%
|
|
3 months at -20℃ to +45℃
|
300 cycles ≥88%
|
||
|
1 month at -20℃ to +60℃
|
500 cycles ≥80%
|
||
|
3. Cell protection
|
|||
|
Overcharge Detection
|
-
|
Over discharge Detection
|
-
|
|
Overcurrent Detection
|
-
|
Short protection
|
-
|
1. We can design all kinds of discharge rate battery according to our client's requirement, we can design 65C continue discharge rate battery.
2. High discharge rate platform, median voltage is over 3.3V when discharge under Nominal discharge rate.
3. Low temperature: The highest temperature is below 75 when discharge at discharge rate.
4. Long cycle life: Up to 500 cycles under quick charging and discharging at nominal discharge rate.
5. Good built-up capability and good consistency.
6. Flesible dimension can be widely used in the Tablet PC, commuication equipments
2. High discharge rate platform, median voltage is over 3.3V when discharge under Nominal discharge rate.
3. Low temperature: The highest temperature is below 75 when discharge at discharge rate.
4. Long cycle life: Up to 500 cycles under quick charging and discharging at nominal discharge rate.
5. Good built-up capability and good consistency.
6. Flesible dimension can be widely used in the Tablet PC, commuication equipments
Other Ultra thin lipo battery as below:
| No | Model | capacity(mAh) | Voltage(V) | Thickness(mm) | Width(mm) | Length(mm) |
| 1 | AUK041850 | 12 | 3.7 | 0.47 | 18.5 | 50.5 |
| 2 | AUK042126 | 8 | 3.7 | 0.50 | 21.8 | 26.1 |
| 3 | AUK042255 | 20 | 3.7 | 0.47 | 22.5 | 55.5 |
| 4 | AUK042323 | 8 | 3.7 | 0.47 | 0.5 | 23.5 |
| 5 | AUK043030 | 15 | 3.7 | 0.47 | 30.5 | 30.5 |
| 6 | AUK043228 | 15 | 3.7 | 0.47 | 32.5 | 28.5 |
| 7 | AUK043251 | 25 | 3.7 | 0.47 | 32.5 | 51.5 |
| 8 | AUK043526 | 12 | 3.7 | 0.47 | 35.0 | 26.5 |
| 9 | AUK072247 | 30 | 3.7 | 0.70 | 22.8 | 47.8 |
| 10 | AUK072836 | 30 | 3.7 | 0.70 | 28.0 | 36.0 |
| 11 | AUK082025 | 14 | 3.7 | 0.80 | 20.5 | 25.5 |
| 12 | AUK083960 | 100 | 3.7 | 1.00 | 39.5 | 60.5 |
| 13 | AUK085045 | 100 | 3.7 | 0.80 | 50.0 | 45.5 |
| 14 | AUK10180270 | 3,000 | 3.7 | 1.00 | 180.0 | 270.0 |
| 15 | AUK20180270 | 6,000 | 3.7 | 1.80 | 180.0 | 270.0 |
| 16 | AUK2029110 | 400 | 3.7 | 2.00 | 29.5 | 110.0 |
