60μm Translucent White UV Cured PE Silicone Release Film for Packaging and Labeling
Price:
Negotiable
MOQ:
10000 square meters
Delivery Time:
within 10 days
Brand:
HSF
Product Description

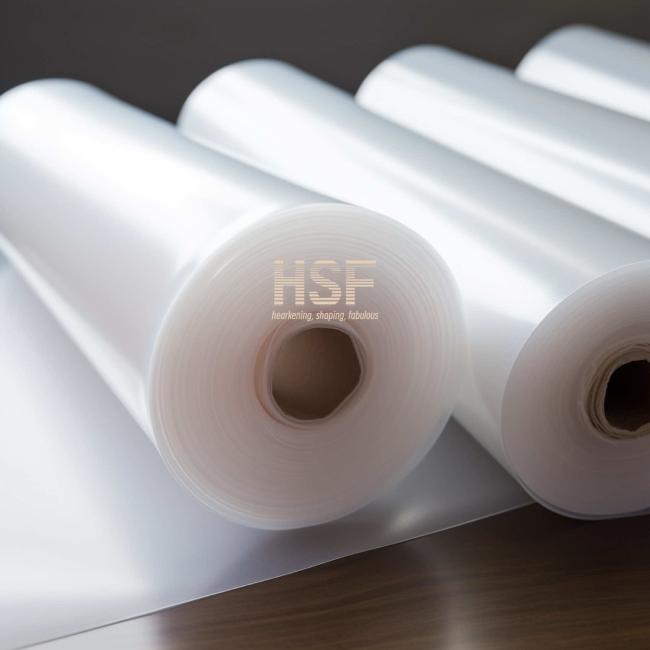

ROHS Translucent White PE Silicone Release Film
60μm translucent white PE release film, silicone UV cured, designed for protective packaging, tapes, labeling, and graphics applications.
Applications
- Label manufacturing as liner or backing material
- Packaging applications for protective layers and liners
- Medical and healthcare industry for sterile barriers
- Stationery and office supplies for document protection
- Arts and crafts projects for creative applications
- Industrial applications requiring protective layers
- Temporary surface protection for delicate materials
- Electrical and electronic applications for insulation
Technical Specifications
| Parameter | Requirement | Measured Value |
|---|---|---|
| Appearance | No air bubbles / stains / breakage / impurities | - |
| Size - Width (mm) | 960 ± 5 | 962 |
| Size - Thickness (mm) | 0.060 ± 0.005 | 0.061 |
| Max. Tension (N/50mm) - TD | ≥ 30 | 84 |
| Max. Tension (N/50mm) - MD | ≥ 30 | 104 |
| Color | White Colorimeter △E＜ 3 | ok |
| Elongation @ break (%) - TD | ≥ 150 | 926 |
| Elongation @ break (%) - MD | ≥ 200 | 799 |
| Surface Tension (Corona treatment) | Dyne Value ≥42 dyne for each side | - |
| Release Force (gf/25mm 20min.Finat 10) - Inner | 5-10 | 8 |
| Release Force (gf/25mm 20min.Finat 10) - Outer | 20-30 | 26 |
| Subsequent Adhesion (%) - Inner | ≥85 | 90 |
| Subsequent Adhesion (%) - Outer | ≥85 | 92 |
| Winding direction | Customized | - |
| Splice No. | ≤1 | - |
