80μm Opaque Blue UV Cured Silicone Release Film for Protective Packaging and Labeling
Price:
Negotiable
MOQ:
10000 square meters
Delivery Time:
within 10 days
Brand:
HSF
Product Description

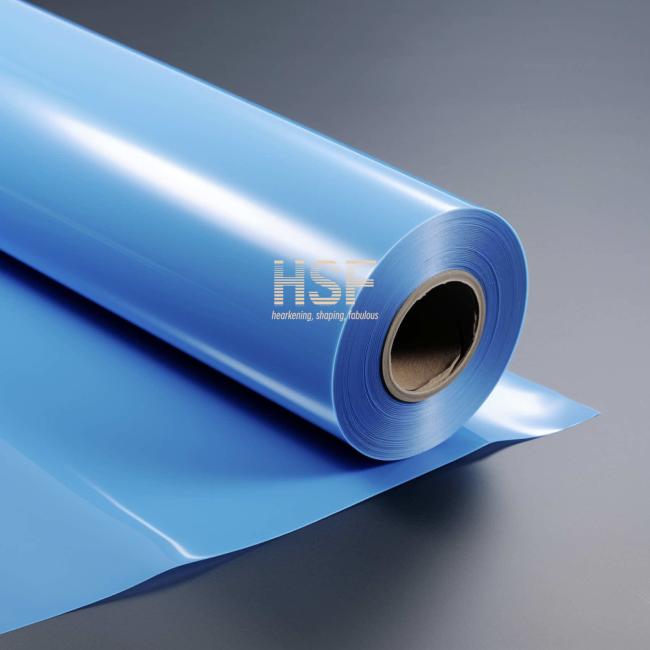

80μm Opaque Blue Release Coating Polyester Film Silicone UV Cured
80 μm opaque blue PE release film, silicone UV cured, designed for protective and packaging applications, tapes, labeling, and graphics.
Product Applications
- Adhesive Tapes: Provides a smooth, non-stick surface for easy tape removal and application
- Labels and Stickers: Enables easy application and removal without damaging adhesive or surfaces
- Graphic Films: Protects adhesive side of vinyl or polyester films during storage, transportation, and application
- Medical Applications: Offers sterile, non-stick surface for wound dressings and transdermal patches
- Industrial Applications: Prevents sticking or damage during manufacturing of composites, laminates, and other materials
Technical Specifications
| No. | Property | Specification | Test Result |
|---|---|---|---|
| 1 | Appearance | No air bubbles / stains / breakage / impurities | OK |
| 2 | Size | Width: 1000 ± 5 mm Thickness: 0.080 ± 0.005 mm |
1001 mm 0.082 mm |
| 3 | Color | White (Colorimeter △E＜ 3) | OK |
| 4 | Tensile Strength (MPa) | TD: ≥ 15 MD: ≥ 15 |
21 27 |
| 5 | Elongation @ break (%) | TD: ≥ 230 MD: ≥ 230 |
962 684 |
| 6 | Surface Tension (Corona treatment) | Dyne Value ≥42 dyne for each side | 42 |
| 7 | Release Force (gf/25mm 20min.Finat 10) | Inner: 5-10 Outer: 20-30 |
7 24 |
| 8 | Subsequent Adhesion (%) | Inner: ≥85 Outer: ≥85 |
88 90 |
| 9 | Winding direction | Customized | - |
| 10 | Splice No. | ≤1 | - |
Silicone Coating Process
Coating Application Steps
- Surface Preparation: Clean polyethylene film surface free from dust, dirt, and contaminants using compatible solvents
- Silicone Coating Solution: Prepare silicone polymer or emulsion mixed with suitable solvent or carrier
- Coating Application: Apply using roll coating, spray coating, or knife coating methods for even distribution
- Drying or Curing: Pass coated film through drying oven or use specified curing methods for proper adhesion
- Quality Control: Inspect for defects, measure coating thickness, and conduct adhesion tests
