80μm Opaque Red UV Cured Silicone Coated PE Release Film for Labeling and Packaging
Price:
Negotiable
MOQ:
10000 square meters
Delivery Time:
within 10 days
Brand:
HSF
Product Description

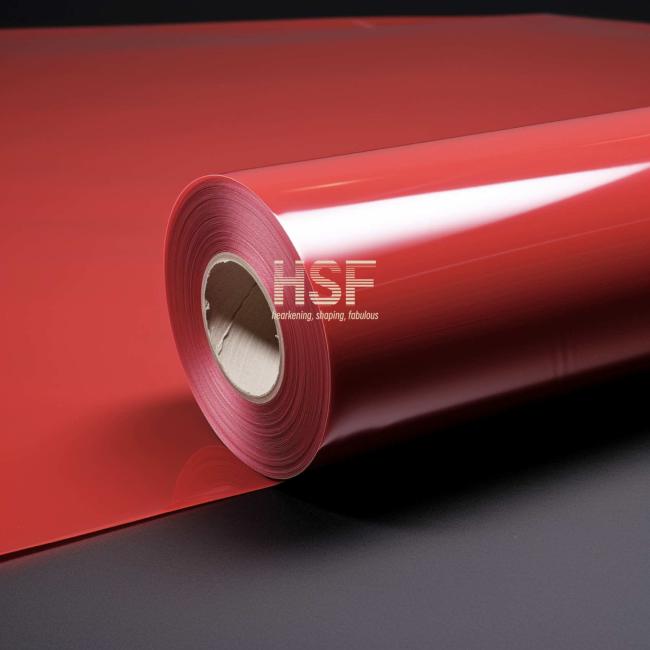

80μm Opaque Red Silicone Coated Release Film
80 μm opaque red polyethylene release film with UV-cured silicone coating, designed for protective packaging, tapes, labeling, and graphics applications.
Product Applications
- Adhesive Tape & Label Manufacturing: Serves as liner or backing material for pressure-sensitive adhesive products
- Graphic Arts & Printing: Protective layer for decals, stickers, and labels ensuring clean release
- Die-Cutting & Stamping: Liner for die-cut shapes and stamped designs
- Composite Manufacturing: Release liner for fiberglass, carbon fiber, and resin-based composites
- Automotive Industry: Release liner for adhesive-backed components, emblems, and trims
- Electronics Manufacturing: Protective layer for electronic components and circuit boards
- Medical & Pharmaceutical: Release liner for medical devices and transdermal patches
- Protective Films: Surface protection during manufacturing and transportation
- Industrial Applications: Release liner for rubber products, gaskets, and seals
- Arts & Crafts: Decorative element and protective layer for creative projects
Technical Specifications
| No. | Property | Specification | Test Result |
|---|---|---|---|
| 1 | Appearance | No air bubbles / stains / breakage / impurities | OK |
| 2 | Size | Width: 1000 ± 5 mm Thickness: 0.080 ± 0.005 mm |
Width: 1001 mm Thickness: 0.082 mm |
| 3 | Color | White (Colorimeter △E＜ 3) | OK |
| 4 | Tensile Strength (MPa) | TD: ≥ 15 MD: ≥ 15 |
TD: 21 MD: 27 |
| 5 | Elongation @ Break (%) | TD: ≥ 230 MD: ≥ 230 |
TD: 962 MD: 684 |
| 6 | Surface Tension | ≥42 dyne for each side | |
| 7 | Release Force (gf/25mm) | Inner: 5-10 Outer: 20-30 |
Inner: 7 Outer: 24 |
| 8 | Subsequent Adhesion (%) | Inner: ≥85 Outer: ≥85 |
Inner: 88 Outer: 90 |
| 9 | Winding Direction | Customized | - |
| 10 | Splice No. | ≤1 | - |
