50μm Opaque Red PET Fluorosilicone Release Film with Chemical Resistance for Industrial Applications
Price:
Negotiable
MOQ:
10000 s.q.m
Delivery Time:
within 45 days depends on the reserve of raw materials
Brand:
HSF
Product Description

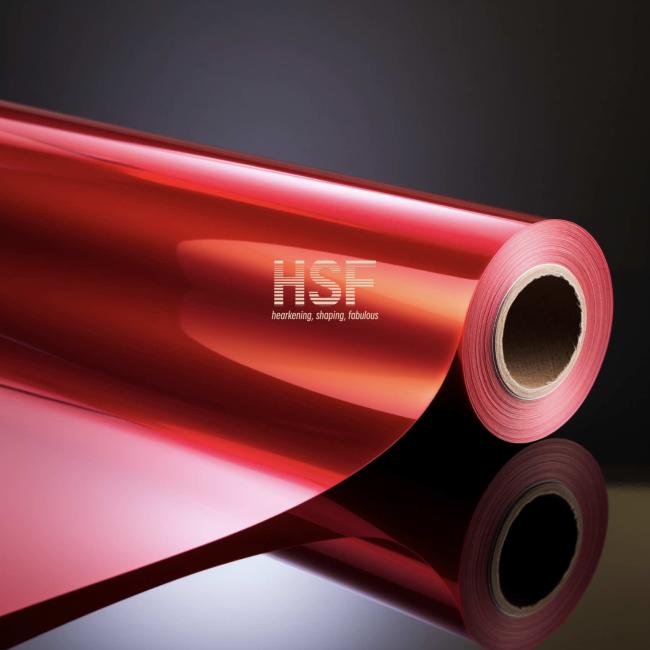

50μm Opaque Red PET Fluorosilicone Release Film
50 μm red PET fluorosilicone coated release film with excellent release properties and resistance to oils, solvents, and chemicals.
PET fluorosilicone coated release film is used across multiple industries including packaging, labeling, medical, automotive, and electronics due to its superior performance characteristics.
Key Advantages Over Standard PET Silicone Coated Film
- Release Properties: Superior release performance with low coefficient of friction, excellent performance with various adhesives even in high-temperature and high-humidity environments
- Chemical Resistance: Exceptional resistance to oils, solvents, and chemicals, ideal for harsh chemical environments
- Temperature Resistance: Wider temperature range performance, excellent in high-temperature and high-humidity conditions
- Adhesion Properties: Excellent adhesion to various substrates including plastics, metals, and glass with strong bonding to adhesives
Fluorosilicone release film isolates and protects adhesive items such as silicone and PI tapes during production, storage, and transportation, preventing contamination and spoiling. It serves as a carrier for adhesive tapes and functions similarly to release liners with enhanced fluorine-based properties.
Application Scenarios
- Gaskets and Seals: Release liner for gasket materials with red color for visual differentiation and identification
- Automotive Industry: Protective layer for automotive components, gaskets, seals, and interior trim parts
- Electronics and Electrical Components: Protective layer for circuit boards, connectors, and sensors with color-coded identification
- Masking Applications: Masking tape and die-cut masking material for painting, powder coating, and surface treatment
- Decorative and Specialty Applications: Decorative accents, trimmings, and coverings for crafts, displays, and events
- Identification and Labeling: Base material for durable tags, labels, and identification markers
- Industrial Applications: Protective layer in manufacturing processes with color-coding and scratch/chemical protection
Technical Specifications
| Test Item | Unit | Range |
|---|---|---|
| Fluorosilicone Release Side | g/25mm | 5-8 |
| Backing Liner (Clear PET) | mm | 0.050 ± 0.003 |
| Width | mm | 1040 ± 5 |
| Length | m | 2000 ±200 |
| Color | - | Transparent |
| Sub-Adhesion Rate | % | ≧85 |
Release Force Testing Parameters
| Tape | MY2G |
| Speed | 300mm/min |
| Angle | 180° |
| Instrument | 5000g range tensile machine |
| Environment | 30 min. at room temperature, after attaching |
Subsequent Adhesion Rate Testing Parameters
| Tape | NITTO 31B |
| Aging Environment | 70℃ |
| Aging Time | 20h |
| Time in a normal temperature | 4h |
| Instrument | 5000g range tensile machine |
| Storage Temperature | 15-35℃ (in original packing status) |
| Storage Humidity | 30-70% (in original packing status) |
